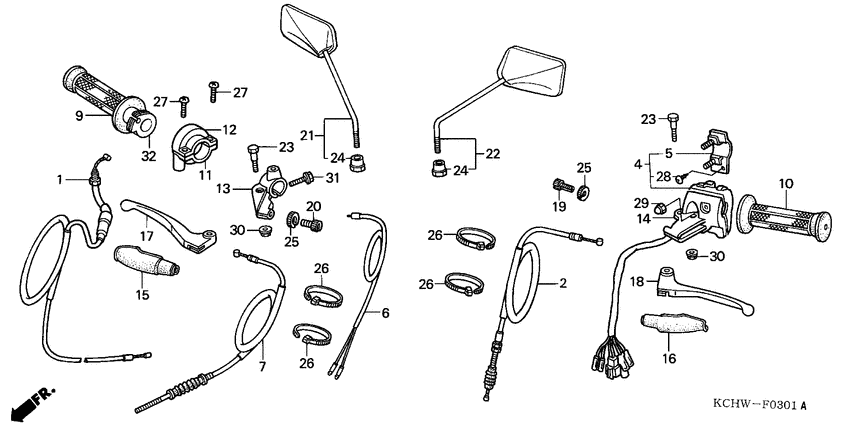

Handle lever/switch/cable (2) Diagram Honda CG125
- Year
- 2001
- Model code
- CG1251
- Sales region
- Total (km / h)
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-KCH-780
Cable comp,throt
|
17910-KCH-780 |
— | ||
|
2
|
2
22870-KCH-780
Cable comp,clutch
|
22870-KCH-780 |
— | ||
|
4
|
4
35210-KCH-770
Sw.assy,winker
|
35210-KCH-770 |
— | ||
|
5
|
5
35214-KCH-780
Plate,set
|
35214-KCH-780 |
— | ||
|
6
|
6
35340-GAN-620 Switch assy.,fr.s |
35340-GAN-620 |
from US $14.42 |
||
|
7
|
7
45450-KCH-780
Cable comp,fr brk
|
45450-KCH-780 |
— | ||
|
9
|
9
53165-KY0-750
Grip,r handle
|
53165-KY0-750 |
— | ||
|
10
|
10
53166-KY0-750
Gripe,l handle
|
53166-KY0-750 |
— | ||
|
11
|
11
53167-397-630
Housing a,throt.
|
53167-397-630 |
— | ||
| replacement | |||||
|
11
|
11
53167-KRM-860
HOUSING A, GRIP
|
53167-KRM-860 |
— | ||
|
12
|
12
53168-166-000 Housing, throttle |
53168-166-000 |
from US $9.92 |
||
|
13
|
13
53171-KCH-780
Brkt,r hndl lever
|
53171-KCH-780 |
— | ||
|
14
|
14
53172-KY0-970
Bracket, l
|
53172-KY0-970 |
— | ||
|
15
|
15
53173-KCH-780
Cover,r hndl leve
|
53173-KCH-780 |
— | ||
|
16
|
16
53174-KY0-970
Cover,l.handle le
|
53174-KY0-970 |
— | ||
|
17
|
17
53175-KY0-970
Lever,r.steering
|
53175-KY0-970 |
— | ||
| replacement | |||||
|
17
|
17
53175-KCH-900 Lever, r. handlebar |
53175-KCH-900 |
US $15.84 |
||
|
18
|
18
53178-KY0-970
Lever,l.steering
|
53178-KY0-970 |
— | ||
|
19
|
19
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.74 |
||
|
20
|
20
53192-312-000 Bolt |
53192-312-000 |
from US $10 |
||
|
21
|
21
88110-KY0-820
Mirror assy,r bac
|
88110-KY0-820 |
— | ||
|
22
|
22
88120-KY0-820
Mirror assy,l bac
|
88120-KY0-820 |
— | ||
|
23
|
23
90113-KY0-970
Bolt,steering han
|
90113-KY0-970 |
— | ||
|
24
|
24
90314-329-000 Nut,lock |
90314-329-000 |
from US $4.59 |
||
|
25
|
25
90321-315-670 Nut, fixing |
90321-315-670 |
from US $6.07 |
||
|
26
|
26
90650-KW3-000 Band, wire |
90650-KW3-000 |
from US $3.03 |
||
|
27
|
27
93500-050220G Screw, pan (5x22) |
93500-050220G |
from US $0.44 |
||
|
28
|
28
93901-32120 ScrewTAPPING, 3X8 |
93901-32120 |
from US $0.37 |
||
|
29
|
29
94021-050-700-S NutCAP, 5MM |
94021-050-700-S |
from US $0.47 |
||
|
30
|
30
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
31
|
31
95701-060-250-7 BoltFLANGE, 6X25 |
95701-060-250-7 |
from US $0.59 |
||
|
32
|
32
53141-362-000
Pipe,grip
|
53141-362-000 |
— | ||
