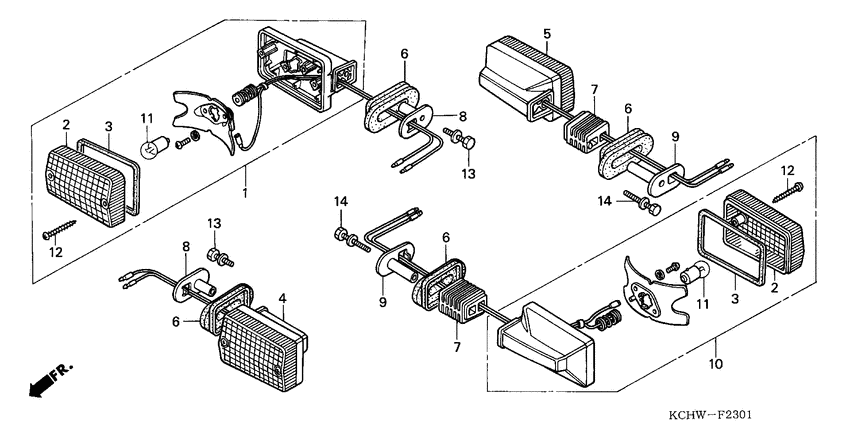

Winker (2) Diagram Honda CG125
- Year
- 2001
- Model code
- CG1251
- Sales region
- Total (km / h)
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33400-KCH-780
Winker assy,r fr
|
33400-KCH-780 |
— | ||
|
2
|
2
33402-KCS-920
Lens,winker
|
33402-KCS-920 |
— | ||
|
3
|
3
33406-KCS-920
Packing,winker le
|
33406-KCS-920 |
— | ||
|
4
|
4
33450-KCH-780
Winker assy,l fr
|
33450-KCH-780 |
— | ||
|
5
|
5
33600-KCH-780
Winker Assy,r Rr
|
33600-KCH-780 |
— | ||
|
6
|
6
33604-KY0-910
Rubber,winker mou
|
33604-KY0-910 |
— | ||
|
7
|
7
33641-397-640
Stay winker
|
33641-397-640 |
— | ||
|
8
|
8
33644-KY0-910
Collar,fr.winker
|
33644-KY0-910 |
— | ||
|
9
|
9
33647-KY0-910
Collar,rr.winker
|
33647-KY0-910 |
— | ||
|
10
|
10
33650-KCH-780
Winker Assy,l Rr
|
33650-KCH-780 |
— | ||
|
11
|
11
34907-KCH-780 Bulb,winker |
34907-KCH-780 |
US $2.29 |
||
|
12
|
12
90156-GB0-900 Screw,tap,3x28 |
90156-GB0-900 |
US $2.22 |
||
|
13
|
13
93401-060-350-0 Bolt-washer,6x35 |
93401-060-350-0 |
from US $0.59 |
||
|
14
|
14
93401-060-600-0 Bolt-washer,6x60 |
93401-060-600-0 |
US $0.74 |
