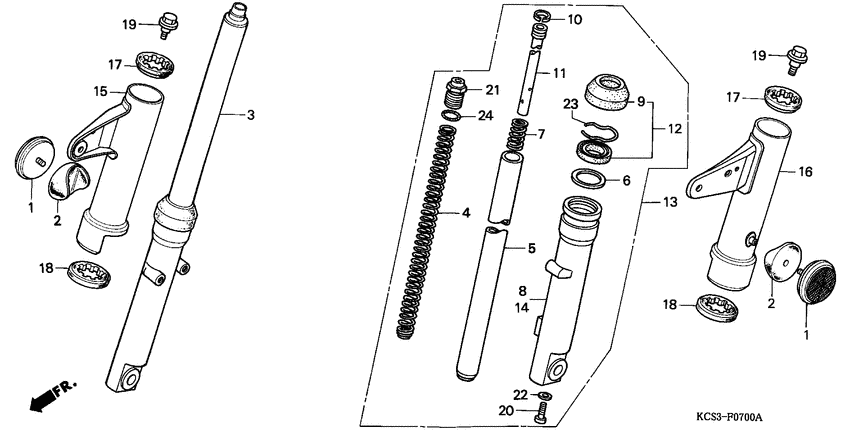

Front fork (1) Diagram Honda CG125
- Year
- 1993
- Model code
- CG125P
- Sales region
- Singapore
- Frame
- CG1251700004 - CG1251799999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-413-013
Reflector, fr.
|
33741-413-013 |
— | ||
| replacement | |||||
|
1
|
1
33742-HB9-641 Reflector, fr. |
33742-HB9-641 |
from US $14.28 |
||
|
2
|
2
33744-331-770
Base,fr.reflector
|
33744-331-770 |
— | ||
|
3
|
3
51400-KCS-671
Fork assy,r front
|
51400-KCS-671 |
— | ||
|
4
|
4
51401-KY0-981
Spring,fr.fork
|
51401-KY0-981 |
— | ||
|
5
|
5
51410-KY0-981 Pipe comp.,fr.for |
51410-KY0-981 |
US $233.73 |
||
|
6
|
6
51412-KCS-671 RingBACK UP |
51412-KCS-671 |
US $4.74 |
||
|
7
|
7
51412-383-721 Spring, rebound |
51412-383-721 |
from US $6.84 |
||
|
8
|
8
51420-KCS-671 Case comp.r,fr.bo |
51420-KCS-671 |
US $246.40 |
||
|
9
|
9
51425-118-023 Dust seal,fr.fork |
51425-118-023 |
from US $13.48 |
||
|
10
|
10
51437-383-721
Ring, piston
|
51437-383-721 |
— | ||
| replacement | |||||
|
10
|
10
51437-GM0-003 Ring, piston |
51437-GM0-003 |
from US $4.28 |
||
|
11
|
11
51470-KY0-981 Pipe,seat |
51470-KY0-981 |
US $34.21 |
||
|
12
|
12
51490-159-700 Seal set,oil/dust |
51490-159-700 |
US $20.67 |
||
|
13
|
13
51500-KCS-671
Fork assy,l front
|
51500-KCS-671 |
— | ||
|
14
|
14
51520-KCS-671 Case comp.l,fr.bo |
51520-KCS-671 |
US $246.40 |
||
|
15
|
15
51602-KCS-670ZA
Cover,r f*tmfcr3*
|
51602-KCS-670ZA |
— | ||
|
16
|
16
51606-KCS-670ZA
Cover,l f*tmfcr3*
|
51606-KCS-670ZA |
— | ||
|
17
|
17
51621-107-000 Mount,fork upper |
51621-107-000 |
US $4.97 |
||
|
18
|
18
51622-397-710 Mount,cover under |
51622-397-710 |
US $5.45 |
||
|
19
|
19
90112-KCS-650 Bolt,fr.fork |
90112-KCS-650 |
from US $3.94 |
||
|
20
|
20
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $4.44 |
||
|
21
|
21
90123-198-003 Bolt, fork |
90123-198-003 |
from US $10.66 |
||
|
22
|
22
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
23
|
23
90601-383-721 Ring |
90601-383-721 |
from US $4.97 |
||
|
24
|
24
91256-166-003 O-ring (16.8x2.4) |
91256-166-003 |
from US $2.74 |
||
