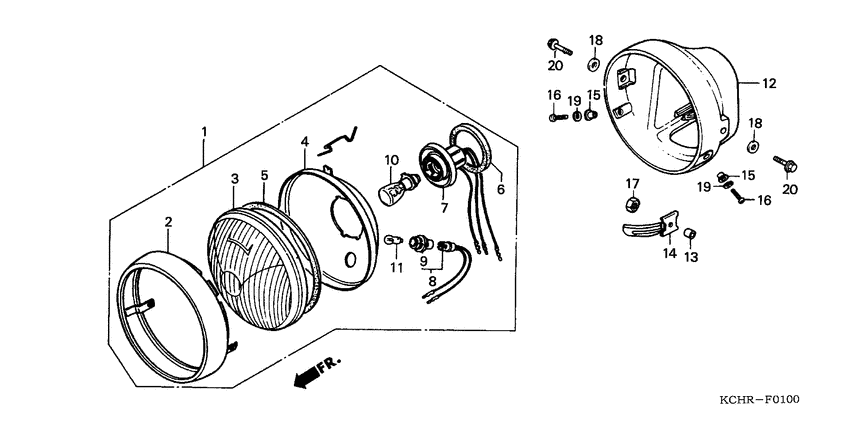

Headlight Diagram Honda CG125
- Year
- 1995
- Model code
- CG125S
- Sales region
- England
- Frame
- 9C2JC1821RR010001 - 9C2JC1821RR019999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-KE2-900
Light,head
|
33100-KE2-900 |
— | ||
|
2
|
2
33101-088-950 Rim,head light |
33101-088-950 |
US $34.27 |
||
|
3
|
3
33103-070-000 Lens head light |
33103-070-000 |
US $12.95 |
||
|
4
|
4
33104-070-000
Reflector head
|
33104-070-000 |
— | ||
|
5
|
5
33105-070-000 Packing head |
33105-070-000 |
US $4.29 |
||
|
6
|
6
33109-567-003 Gasket,head light |
33109-567-003 |
US $3.85 |
||
|
7
|
7
33130-KE2-900
Socket,hd/light
|
33130-KE2-900 |
— | ||
|
8
|
8
33140-167-003
Soc,position lamp
|
33140-167-003 |
— | ||
|
9
|
9
33155-166-003 Rubber, joint |
33155-166-003 |
from US $4.22 |
||
|
10
|
10
34901-397-630
Bulb head light
|
34901-397-630 |
— | ||
|
11
|
11
34902-259-000 BulbDASH (12V 3.4W) (STANLEY) |
34902-259-000 |
US $3.03 |
||
| replacement | |||||
|
11
|
11
34902-259-003 Bulb (12v 3.4w) |
34902-259-003 |
from US $3.70 |
||
|
12
|
12
61301-441-970ZA
Case,hd/lt*nh-1*
|
61301-441-970ZA |
— | ||
|
13
|
13
61302-229-300 Collar,light.case |
61302-229-300 |
US $2.66 |
||
|
14
|
14
61303-441-860
Clip,wire harness
|
61303-441-860 |
— | ||
|
15
|
15
61304-379-690 Collar |
61304-379-690 |
from US $3.64 |
||
|
16
|
16
93500-050-160-G Screw |
93500-050-160-G |
from US $0.37 |
||
|
17
|
17
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.44 |
||
|
18
|
18
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
19
|
19
94111-05700 WasherSPRING, 5MM |
94111-05700 |
from US $0.37 |
||
|
20
|
20
95701-080-200-0 Bolt, flange, 8x20 |
95701-080-200-0 |
from US $0.59 |
||
