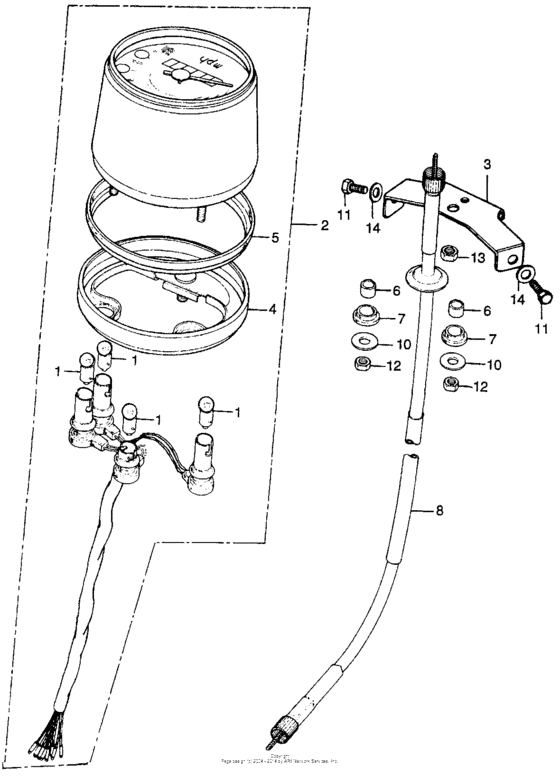

Cl100s speedometer k3 Diagram Honda CL CL100
- Model code
- CL100S3 A
- Sales region
- USA
- Frame
- CL100S1300001 - CL100S1301000
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34908-230-000 Bulb,speedometer |
34908-230-000 |
from US $2.74 |
||
|
2
|
2
37200-324-670
Speedometer assy
|
37200-324-670 |
— | ||
|
3
|
3
37212-324-670
Holder, speedometer
|
37212-324-670 |
— | ||
|
4
|
4
37213-110-790 Ring,meter set |
37213-110-790 |
US $23.39 |
||
|
5
|
5
37242-307-670 Cushion meter |
37242-307-670 |
US $11.40 |
||
|
6
|
6
37243-307-670 Colr, meter setting |
37243-307-670 |
from US $3.11 |
||
|
7
|
7
37244-307-670 Rubber |
37244-307-670 |
from US $3.55 |
||
|
8
|
8
44830-065-730
Cable,speedometer
|
44830-065-730 |
— | ||
|
10
|
10
90581-831-650 Washer (18mm) |
90581-831-650 |
from US $1.55 |
||
|
11
|
11
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
11
|
11
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
11
|
11
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
12
|
12
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
13
|
13
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
14
|
14
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
