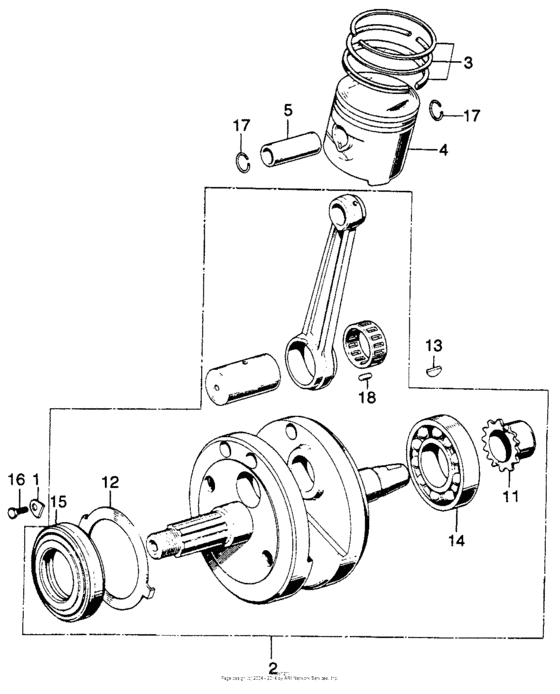

Crankshaft + piston Diagram Honda CL CL125
- Model code
- CL125S1 A
- Sales region
- USA
- Frame
- CL125S1100001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11112-107-760
Plate
|
11112-107-760 |
— | ||
|
2
|
2
13000-331-770
Crankshaft
|
13000-331-770 |
— | ||
|
3
|
3
13011-330-005
Ring set (std)
|
13011-330-005 |
— | ||
|
3
|
3
13021-330-005
Ring set (os) (0.25)
(Optional). |
13021-330-005 |
— | ||
|
3
|
3
13031-330-005 Ring set (os) (0.50)(Optional). |
13031-330-005 |
US $77.67 |
||
|
3
|
3
13041-330-005
Ring set (os) (0.75)
(Optional). |
13041-330-005 |
— | ||
|
3
|
3
13051-330-005
Ring set (1.00)
(Optional). |
13051-330-005 |
— | ||
|
4
|
4
13101-323-405
Piston
|
13101-323-405 |
— | ||
|
4
|
4
13102-323-405
Piston (0.25)
(Optional). |
13102-323-405 |
— | ||
|
4
|
4
13102-330-000 Piston (os) (0.25)(Optional). |
13102-330-000 |
US $52.19 |
||
| replacement | |||||
|
4
|
4
13102-323-405
Piston (0.25)
(Optional). |
13102-323-405 |
— | ||
|
4
|
4
13103-323-405
Piston (0.50)
(Optional). |
13103-323-405 |
— | ||
|
4
|
4
13104-330-000
Piston
(Optional). |
13104-330-000 |
— | ||
|
4
|
4
13105-330-000
Piston
(Optional). |
13105-330-000 |
— | ||
|
5
|
5
13111-440-000 Pin, piston |
13111-440-000 |
from US $13.62 |
||
|
11
|
11
14311-958-000 Sprocket (16t) |
14311-958-000 |
from US $31.28 |
||
|
12
|
12
90451-324-300
Washer,thrust 30
|
90451-324-300 |
— | ||
|
13
|
13
90741-253-000
Key,woodruff4mm
|
90741-253-000 |
— | ||
|
14
|
14
91001-071-003 Bearing (6305) |
91001-071-003 |
from US $17.41 |
||
|
15
|
15
91011-107-760 R/brg other n/com |
91011-107-760 |
US $125.31 |
||
|
16
|
16
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
16
|
16
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
16
|
16
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
17
|
17
94601-15000 Clip, piston pin, 15mm |
94601-15000 |
from US $0.44 |
||
|
18
|
18
96220-30100 Roller,3x10 |
96220-30100 |
US $0.22 |
||
