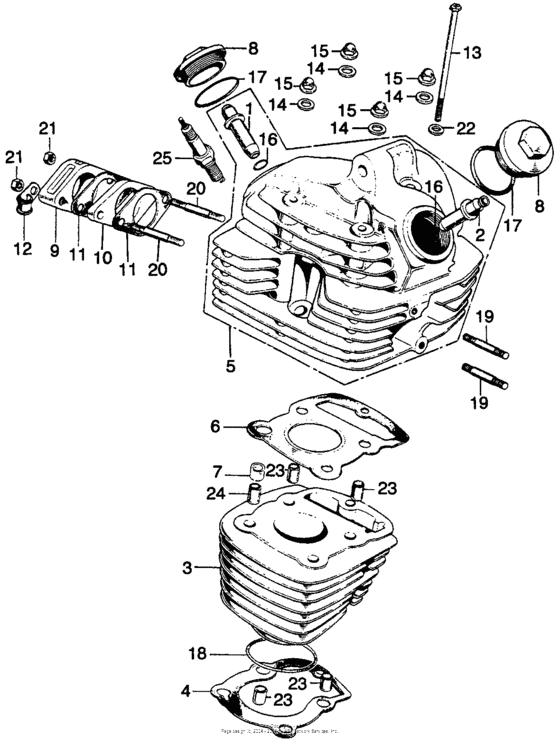

Cylinder + cylinder head Diagram Honda CL CL125
- Model code
- CL125S1 A
- Sales region
- USA
- Frame
- CL125S1100001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12021-107-310 Guide, valve |
12021-107-310 |
US $14.28 |
||
|
2
|
2
12023-439-300
Guide, ex. valve
|
12023-439-300 |
— | ||
|
3
|
3
12100-324-010
Cylinder
|
12100-324-010 |
— | ||
|
4
|
4
12191-KAY-690 Gasket, cylinder |
12191-KAY-690 |
from US $4.56 |
||
|
5
|
5
12200-324-010
Cylinder head
|
12200-324-010 |
— | ||
|
6
|
6
12251-437-P00
Set,cylinder head
|
12251-437-P00 |
— | ||
|
7
|
7
12261-105-690 Gasket, cyl stud |
12261-105-690 |
from US $8.14 |
||
|
8
|
8
12361-383-000 Cap, tappet adjusting hole |
12361-383-000 |
from US $5.77 |
||
|
9
|
9
16212-107-000 Flange,carburetor |
16212-107-000 |
US $12.90 |
||
|
10
|
10
16213-107-306
Insulator, carb
|
16213-107-306 |
— | ||
|
11
|
11
16229-107-306
Gasket, insulator
|
16229-107-306 |
— | ||
|
12
|
12
32906-107-000 Clip,tension.cord |
32906-107-000 |
US $3.26 |
||
|
13
|
13
90081-107-000 Bolt,hs.6mm |
90081-107-000 |
US $4 |
||
|
14
|
14
90442-028-000 Washer (8mm) |
90442-028-000 |
from US $1.22 |
||
|
15
|
15
90443-107-000 Nut, cap, 8mm |
90443-107-000 |
from US $2.23 |
||
|
16
|
16
91301-200-000 O-ring (10x1.6) |
91301-200-000 |
from US $2.37 |
||
|
17
|
17
91303-107-000 O-ring, 35x3 |
91303-107-000 |
from US $2.45 |
||
| replacement | |||||
|
17
|
17
91303-KK3-830 O-ring (35x3) |
91303-KK3-830 |
from US $3.33 |
||
|
18
|
18
91304-286-000 O ring,61.8x2.0 |
91304-286-000 |
from US $10.42 |
||
|
19
|
19
92700-06045-3E
Bolt,stud,6x45
|
92700-06045-3E |
— | ||
|
20
|
20
92700-06055-0B Bolt,stud,6x55 |
92700-06055-0B |
from US $0.81 |
||
|
21
|
21
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
22
|
22
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
23
|
23
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
24
|
24
94301-10200 Dowel pin10X20 |
94301-10200 |
from US $1.04 |
||
|
25
|
25
98069-58717 Plug,spark |
98069-58717 |
US $3.57 |
||
