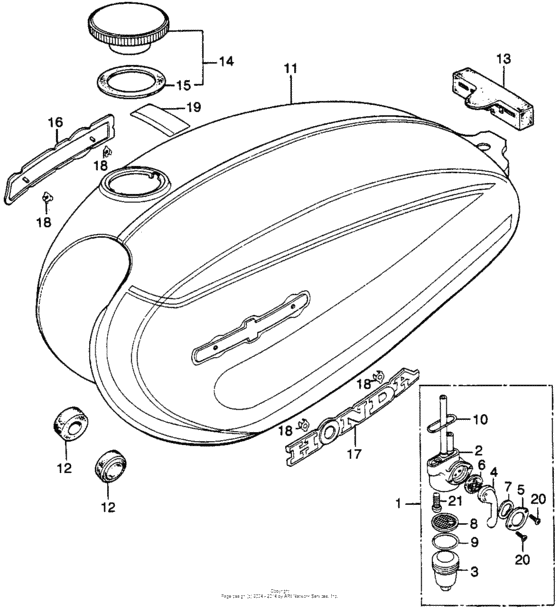

Fuel tank + fuel valve Diagram Honda CL CL125
- Model code
- CL125S1 A
- Sales region
- USA
- Frame
- CL125S1100001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-107-005 Cock.fuel,cb.cl90 |
16950-107-005 |
from US $45.21 |
||
|
2
|
2
16951-107-000
Body,fuel cock
|
16951-107-000 |
— | ||
|
3
|
3
16952-028-000
Cup
|
16952-028-000 |
— | ||
|
4
|
4
16953-028-004 Lever,cock |
16953-028-004 |
US $8.78 |
||
|
5
|
5
16954-028-000
Cover,cock
|
16954-028-000 |
— | ||
|
6
|
6
16957-ZE1-812 Packing, fuel cock |
16957-ZE1-812 |
from US $1.78 |
||
|
7
|
7
16956-ZE1-811 Spring, cock lever |
16956-ZE1-811 |
from US $1.70 |
||
|
8
|
8
16957-028-000 Screen |
16957-028-000 |
from US $13.19 |
||
|
9
|
9
16080-898-631 O-ring |
16080-898-631 |
from US $15.86 |
||
|
9
|
9
16955-283-000 Packing, cock |
16955-283-000 |
US $5.92 |
||
| replacement | |||||
|
9
|
9
16075-GHB-B00 O-ring (2.4x18.6) |
16075-GHB-B00 |
from US $5.15 |
||
|
10
|
10
16997-273-006 Oring,23mm |
16997-273-006 |
from US $6.67 |
||
|
11
|
11
17500-359-700CM
Tank, fuel *r4c*
|
17500-359-700CM |
— | ||
|
12
|
12
17611-331-000 Cushion,fuel tank |
17611-331-000 |
from US $5.77 |
||
|
13
|
13
17613-051-010 Cushion, tank rr. |
17613-051-010 |
from US $6.22 |
||
|
14
|
14
17620-402-010
Cap comp.,fuel fi
|
17620-402-010 |
— | ||
| replacement | |||||
|
14
|
14
17620-402-020 CAP, FUEL FILLER |
17620-402-020 |
US $18.87 |
||
|
15
|
15
17631-329-003
Packing, fuel filler cap (39x58x3)
|
17631-329-003 |
— | ||
| replacement | |||||
|
15
|
15
17631-329-013 PACKING, FUEL FILLER |
17631-329-013 |
US $2.15 |
||
|
16
|
16
87121-359-670
Emblem, r. fuel tank
|
87121-359-670 |
— | ||
|
17
|
17
87122-359-670
Emblem, l. fuel tank
|
87122-359-670 |
— | ||
|
18
|
18
87311-516-000
Nut,rear ornament
|
87311-516-000 |
— | ||
| replacement | |||||
|
18
|
18
87311-634-600 Nut emblem |
87311-634-600 |
from US $2.59 |
||
|
18
|
18
87311-634-600 Nut emblem |
87311-634-600 |
from US $2.59 |
||
|
19
|
19
87560-323-670-A Mark,caution |
87560-323-670-A |
from US $4 |
||
|
20
|
20
93500-030060A Screw, pan, 3x6 |
93500-030060A |
from US $0.37 |
||
|
21
|
21
93500-060-160-A ScrewPAN, 6X16 |
93500-060-160-A |
from US $0.44 |
||
