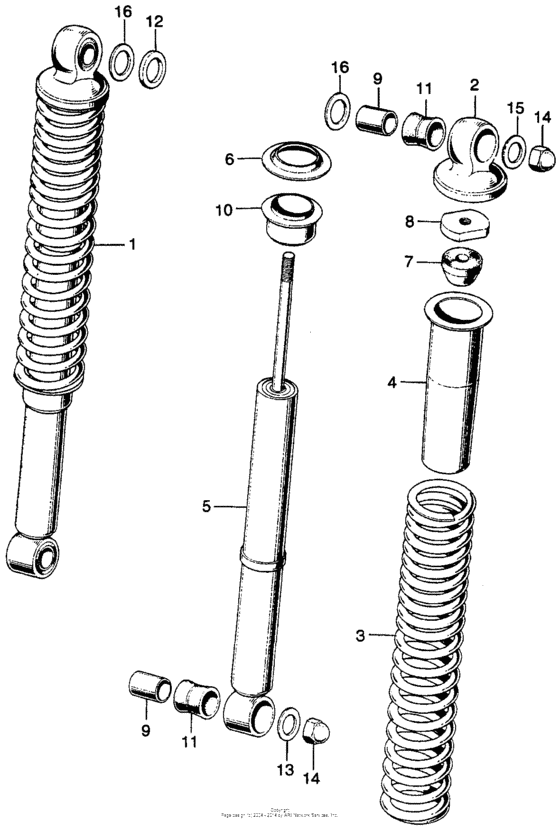

Rear shock absorber Diagram Honda CL CL125
- Model code
- CL125S1 A
- Sales region
- USA
- Frame
- CL125S1100001 -
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-108-761
Shock absorber, rr.
|
52400-108-761 |
— | ||
|
2
|
2
52403-028-000
Metal, cushion
|
52403-028-000 |
— | ||
|
3
|
3
52407-108-761
Spring, rr. shock
|
52407-108-761 |
— | ||
|
4
|
4
52409-108-761
Guide, rr.
|
52409-108-761 |
— | ||
|
5
|
5
52430-324-691
Damper assy., rr.
|
52430-324-691 |
— | ||
|
6
|
6
52458-108-761
Seat, rr. (lower)
|
52458-108-761 |
— | ||
|
7
|
7
52475-230-010 Rubber, rr |
52475-230-010 |
US $5.92 |
||
|
8
|
8
52482-056-670 Nut, rr. |
52482-056-670 |
US $3.18 |
||
|
9
|
9
52486-056-000 Collar, rr. |
52486-056-000 |
from US $2.15 |
||
|
10
|
10
52486-303-000
Seat,spring
|
52486-303-000 |
— | ||
|
11
|
11
52489-056-000 Bush,rear cushion |
52489-056-000 |
from US $2.15 |
||
|
12
|
12
90526-035-000 Washer, 12.2x26 |
90526-035-000 |
US $2.89 |
||
|
13
|
13
90527-230-000 Washer, plain, 10.3mm |
90527-230-000 |
from US $2.87 |
||
|
14
|
14
94021-100200S Nut, cap (10mm) |
94021-100200S |
from US $0.89 |
||
|
15
|
15
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
16
|
16
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
