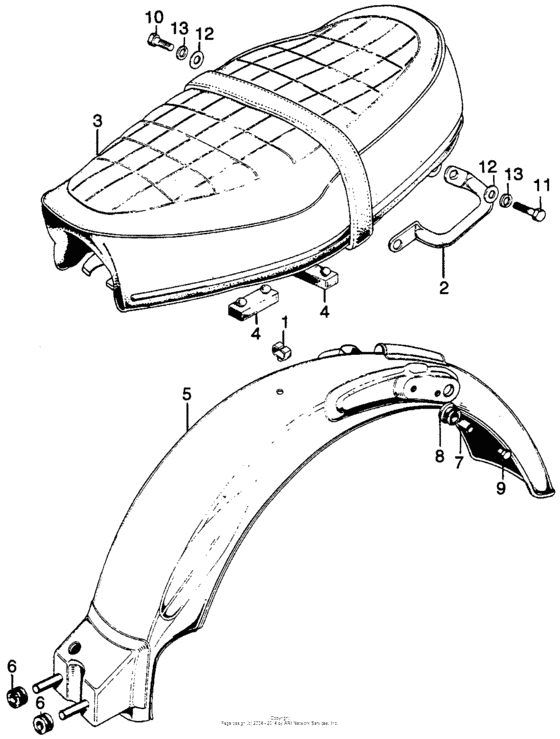

Seat + rear fender Diagram Honda CL CL125
- Model code
- CL125S1 A
- Sales region
- USA
- Frame
- CL125S1100001 -
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32985-107-780
Grommet,wire cord
|
32985-107-780 |
— | ||
|
2
|
2
50316-107-780
Grip,side
|
50316-107-780 |
— | ||
|
3
|
3
77200-359-700-A
Seat assy. *nh1l*
|
77200-359-700-A |
— | ||
|
4
|
4
77205-286-000 Rubber b, seat setting |
77205-286-000 |
from US $6.66 |
||
|
5
|
5
80100-107-782XW
Fender,rear
|
80100-107-782XW |
— | ||
|
6
|
6
80106-028-010
Cushion rr fender
|
80106-028-010 |
— | ||
|
7
|
7
80108-028-000 Collar a, fender |
80108-028-000 |
from US $1.42 |
||
|
8
|
8
80110-107-780 Cushion a,rr.fend |
80110-107-780 |
US $3.89 |
||
|
9
|
9
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
10
|
10
92101-08020-0A BoltHEX., 8X20 |
92101-08020-0A |
from US $0.52 |
||
|
11
|
11
92101-08025-0A Bolt, hex., 8x25 |
92101-08025-0A |
from US $0.59 |
||
|
12
|
12
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
13
|
13
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
