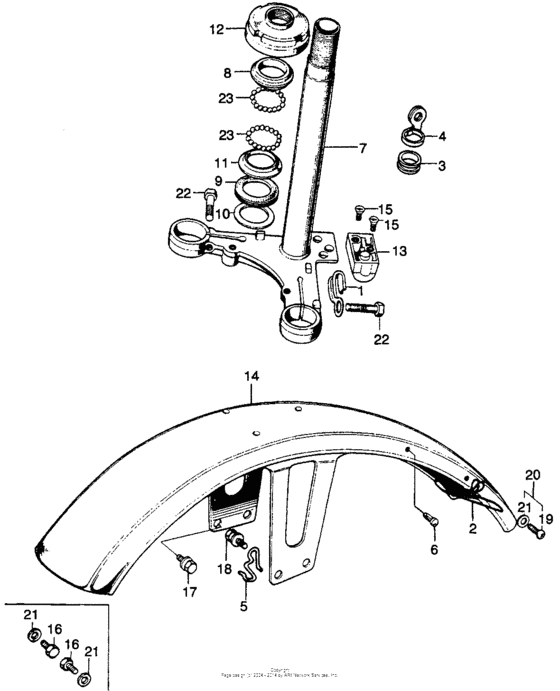

Steering stem + front fender Diagram Honda CL CL125
- Model code
- CL125S1 A
- Sales region
- USA
- Frame
- CL125S1100001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45465-028-000 Clip, wire |
45465-028-000 |
from US $1.60 |
||
|
2
|
2
45465-359-670
Clip, fr.
|
45465-359-670 |
— | ||
|
3
|
3
45466-329-000 Guide, cable (inner)Use from Frame SN 1120002 |
45466-329-000 |
from US $4.04 |
||
|
4
|
4
45468-102-730
Hldr, cable (inner)
Use from Frame SN 1120002 |
45468-102-730 |
— | ||
|
5
|
5
45469-359-700
Clip, fr.
Use from Frame SN 1120002 |
45469-359-700 |
— | ||
|
6
|
6
50049-046-000 Plug, head pipeUse from Frame SN 1120002 |
50049-046-000 |
from US $2.37 |
||
|
7
|
7
53200-028-000-B
Stem, steering
|
53200-028-000-B |
— | ||
| replacement | |||||
|
7
|
7
53200-028-000ZG Stem, steering *nh1* |
53200-028-000ZG |
US $167.28 |
||
|
7
|
7
53200-028-000ZG Stem, steering *nh1* |
53200-028-000ZG |
US $167.28 |
||
|
8
|
8
53211-028-010 Race, steering cone |
53211-028-010 |
from US $7.55 |
||
|
9
|
9
53214-001-010 Dust seal |
53214-001-010 |
from US $2.44 |
||
| replacement | |||||
|
9
|
9
53214-GJG-C20 DUST SEAL |
53214-GJG-C20 |
from US $2.69 |
||
|
10
|
10
53215-001-000 Washer |
53215-001-000 |
from US $1.92 |
||
|
11
|
11
53212-030-010 Race, steering cone |
53212-030-010 |
from US $7.40 |
||
|
12
|
12
53220-074-000 Thread |
53220-074-000 |
from US $10.11 |
||
|
13
|
13
35010-001-010
Switch kit, comb.
|
35010-001-010 |
— | ||
|
14
|
14
61100-359-700XW
Fender, fr. *mrcr2*
Use up to Frame SN 1120001 |
61100-359-700XW |
— | ||
|
15
|
15
90164-028-000 Screw (6x12) |
90164-028-000 |
from US $1.92 |
||
|
16
|
16
92101-06012
Bolt, hex. (6x12)
Use up to Frame SN 1120001 |
92101-06012 |
— | ||
| replacement | |||||
|
16
|
16
92101-06012-0A BoltHEX., 6X12 Use up to Frame SN 1120001 |
92101-06012-0A |
from US $0.44 |
||
|
16
|
16
92101-06012-0A BoltHEX., 6X12 Use up to Frame SN 1120001 |
92101-06012-0A |
from US $0.44 |
||
|
17
|
17
93401-0601200 Bolt-washer (6x12)Use from Frame SN 1120002 |
93401-0601200 |
from US $0.52 |
||
|
18
|
18
93401-060-160-0 Bolt-washer6X16 Use from Frame SN 1120002 |
93401-060-160-0 |
from US $0.52 |
||
|
19
|
19
93500-060140A Screw, pan, 6x14Use up to Frame SN 1120001 |
93500-060140A |
from US $0.44 |
||
|
20
|
20
93891-060-160-0 Screw-washer 6x16Use from Frame SN 1120002 |
93891-060-160-0 |
from US $0.52 |
||
|
21
|
21
94101-06800 WasherPLAIN, 6MM Use up to Frame SN 1120001 |
94101-06800 |
from US $0.37 |
||
|
22
|
22
95300-080-320-0 Bolt,hex.,8x32 |
95300-080-320-0 |
US $0.59 |
||
|
23
|
23
96211-06000 BallSTEEL, #6(3/16) |
96211-06000 |
from US $0.15 |
||
