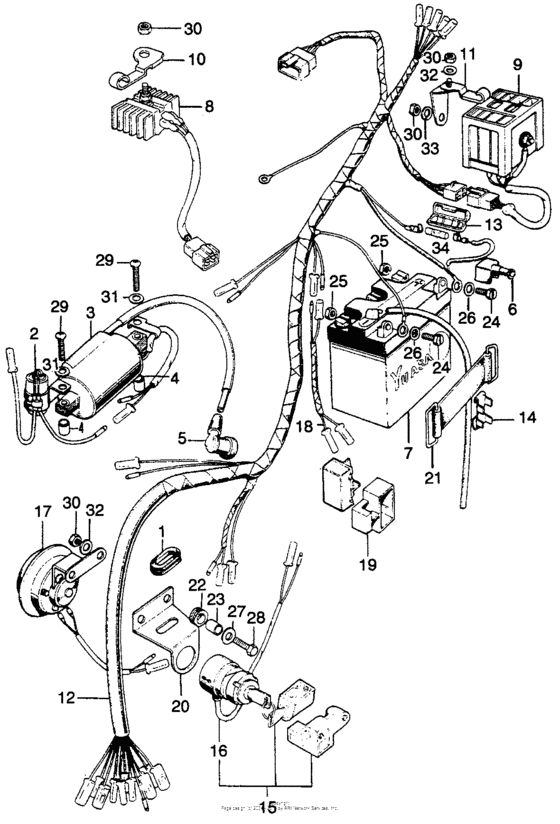

Wire harness + battery Diagram Honda CL CL125
- Model code
- CL125S1 A
- Sales region
- USA
- Frame
- CL125S1100001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17247-240-000 Grommet a, air cleaner case |
17247-240-000 |
from US $4 |
||
|
2
|
2
30250-330-003 Condenser assy |
30250-330-003 |
US $35.09 |
||
|
3
|
3
30530-330-003
Coil comp,d.c.ign
|
30530-330-003 |
— | ||
|
4
|
4
30507-441-000 Collar, ignition coil setting |
30507-441-000 |
from US $3.70 |
||
|
5
|
5
30700-KE2-942 Cap, spark plug |
30700-KE2-942 |
from US $21.78 |
||
|
6
|
6
31468-107-000
Cover, battery
|
31468-107-000 |
— | ||
|
7
|
7
31500-329-677AH
Battery (6n6-3b)
|
31500-329-677AH |
— | ||
|
8
|
8
31700-102-731
Rectifier,silicon
|
31700-102-731 |
— | ||
|
10
|
10
31706-364-670
Clip
|
31706-364-670 |
— | ||
|
12
|
12
32100-359-700
Wire harness
|
32100-359-700 |
— | ||
|
13
|
13
32111-230-000 Case, fuse connector |
32111-230-000 |
from US $4.88 |
||
|
14
|
14
32113-107-000 Holder,fuse |
32113-107-000 |
US $4.59 |
||
|
15
|
15
35030-111-971
Switch-kit,comb.
|
35030-111-971 |
— | ||
|
16
|
16
35010-111-671
Switch,kit.comb
|
35010-111-671 |
— | ||
|
16
|
16
35100-324-761
Switch, combination
|
35100-324-761 |
— | ||
|
17
|
17
38100-110-671
Horn assy
|
38100-110-671 |
— | ||
|
18
|
18
38303-107-670
Sub-cord,winker
|
38303-107-670 |
— | ||
|
19
|
19
38306-092-670
Suspension,winker
|
38306-092-670 |
— | ||
|
20
|
20
50375-331-000
Bracket,switch
|
50375-331-000 |
— | ||
|
21
|
21
95012-15001 Band, battery |
95012-15001 |
from US $3.63 |
||
|
22
|
22
84705-292-000 Rubber |
84705-292-000 |
from US $2.89 |
||
|
23
|
23
84706-286-000 Collar no bracket |
84706-286-000 |
from US $2.74 |
||
|
24
|
24
90122-107-000
Bolt,battery
|
90122-107-000 |
— | ||
|
25
|
25
90306-107-000
Nut,battery
|
90306-107-000 |
— | ||
|
26
|
26
90501-107-000
Washer,battery
|
90501-107-000 |
— | ||
|
27
|
27
90525-030-000 Washer b, handle holder setting |
90525-030-000 |
from US $2.59 |
||
|
28
|
28
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
29
|
29
93500-050-284-J Screw,cross.5x28 |
93500-050-284-J |
US $0.86 |
||
|
30
|
30
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
31
|
31
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
32
|
32
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
34
|
34
98200-11500 Fuse (15a) |
98200-11500 |
from US $0.59 |
