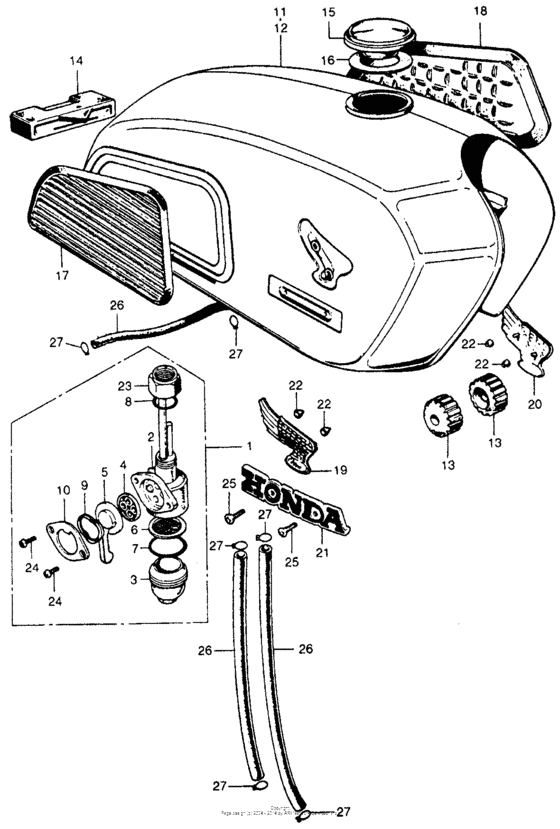

Fuel tank + fuel valve k2 Diagram Honda CL CL350
- Model code
- CL350K2 A
- Sales region
- USA
- Frame
- CL3502000001 -
- Engine Capacity
- 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-292-000 Cock.f,cb250-450 |
16950-292-000 |
from US $91.80 |
||
|
2
|
2
16951-292-000
Body set cock
|
16951-292-000 |
— | ||
|
3
|
3
16952-028-000
Cup
|
16952-028-000 |
— | ||
|
4
|
4
16953-283-000 Packing a. valve |
16953-283-000 |
from US $7.99 |
||
|
5
|
5
16953-298-000 Fuel cock lever |
16953-298-000 |
US $4 |
||
|
6
|
6
16957-028-000 Screen |
16957-028-000 |
from US $13.19 |
||
|
7
|
7
16955-283-000 Packing, cock |
16955-283-000 |
US $5.92 |
||
| replacement | |||||
|
7
|
7
16075-GHB-B00 O-ring (2.4x18.6) |
16075-GHB-B00 |
from US $5.15 |
||
|
8
|
8
16956-283-000 Packing,joint nut |
16956-283-000 |
from US $5.03 |
||
|
9
|
9
16955-816-004
Spring,cock lever
|
16955-816-004 |
— | ||
|
10
|
10
16961-298-000
Setting,lever
|
16961-298-000 |
— | ||
|
12
|
12
17500-318-000CM
Tank, fuel *r4c*
|
17500-318-000CM |
— | ||
|
12
|
12
17500-318-000CN
Tank, fuel *pb3c*
|
17500-318-000CN |
— | ||
|
12
|
12
17500-318-000DD
Tank, fuel *yr1c*
|
17500-318-000DD |
— | ||
|
13
|
13
17611-KE8-000 Rubber, fr |
17611-KE8-000 |
from US $6.36 |
||
|
14
|
14
17613-286-000 Cushion,fuel tank |
17613-286-000 |
from US $19.16 |
||
|
15
|
15
17620-402-010
Cap comp.,fuel fi
|
17620-402-010 |
— | ||
| replacement | |||||
|
15
|
15
17620-402-020 CAP, FUEL FILLER |
17620-402-020 |
US $18.87 |
||
|
16
|
16
17631-329-003
Packing, fuel filler cap (39x58x3)
|
17631-329-003 |
— | ||
| replacement | |||||
|
16
|
16
17631-329-013 PACKING, FUEL FILLER |
17631-329-013 |
US $2.15 |
||
|
21
|
21
87123-105-000 Emblem b fuel |
87123-105-000 |
from US $23.66 |
||
|
23
|
23
90303-268-000
Nut, cock joint
|
90303-268-000 |
— | ||
|
24
|
24
93500-030060A Screw, pan, 3x6 |
93500-030060A |
from US $0.37 |
||
|
25
|
25
93700-030-060-A
Screw cross 3x6
|
93700-030-060-A |
— | ||
|
26
|
26
95001-550-004-0
Tube,fuel5.5x1200
|
95001-550-004-0 |
— | ||
|
26
|
26
17645-259-010
Superceded
|
17645-259-010 |
— | ||
|
26
|
26
95001-50100
Tube fuel
|
95001-50100 |
— | ||
|
26
|
26
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
27
|
27
95002-50000 ClipTUBE(C9) |
95002-50000 |
from US $0.37 |
||
