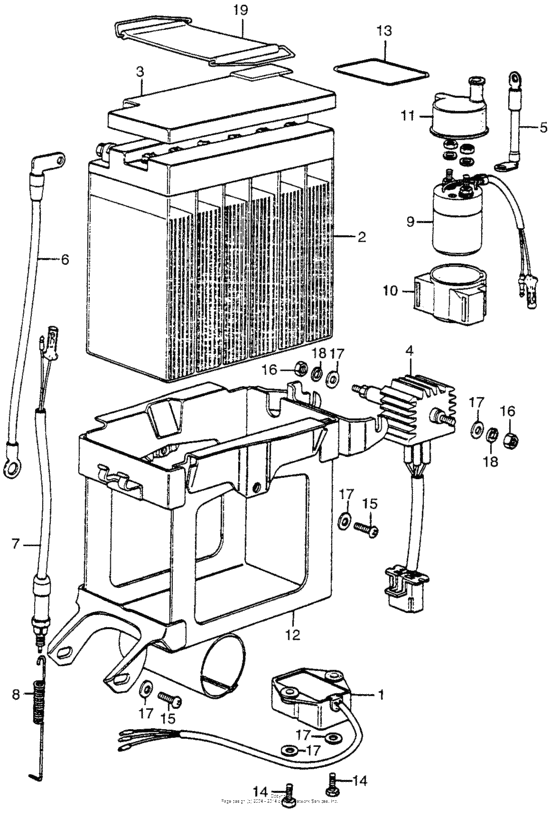

Battery + magnetic switch Diagram Honda CL CL350
- Model code
- CL350K5 A
- Sales region
- USA
- Frame
- CL3505000001 -
- Engine Capacity
- 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-292-670
Pointless
|
31400-292-670 |
— | ||
|
2
|
2
31500-460-672AH Battery (12v12) |
31500-460-672AH |
US $70.18 |
||
|
3
|
3
31532-292-010
Cover battery
|
31532-292-010 |
— | ||
|
4
|
4
31700-455-671
Rectifier,silicon
|
31700-455-671 |
— | ||
|
5
|
5
32401-286-010
Cable battery
|
32401-286-010 |
— | ||
|
6
|
6
32601-286-000
Cable,bat.earth
|
32601-286-000 |
— | ||
|
7
|
7
35350-KJ9-405 Switch assy.,rr.s |
35350-KJ9-405 |
from US $17 |
||
|
8
|
8
35357-286-010
Spring,stopswitch
|
35357-286-010 |
— | ||
|
9
|
9
35850-375-000
Switch,magnetic
|
35850-375-000 |
— | ||
|
10
|
10
35856-413-010 Shock rubber (mag |
35856-413-010 |
from US $8.58 |
||
|
11
|
11
35857-286-000
Cover magnetic
|
35857-286-000 |
— | ||
|
12
|
12
50325-344-010-B
Box,battery
|
50325-344-010-B |
— | ||
|
13
|
13
87506-345-670
Mark,bat.caution
|
87506-345-670 |
— | ||
|
14
|
14
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
15
|
15
9350006010 Screw, pan, 6x10 |
9350006010 |
from US $0.44 |
||
| replacement | |||||
|
15
|
15
93500-060100A Screw, pan, 6x10 |
93500-060100A |
from US $0.44 |
||
|
16
|
16
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
17
|
17
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
18
|
18
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
19
|
19
95012-16001 Band,e,battery |
95012-16001 |
from US $3.63 |
||
