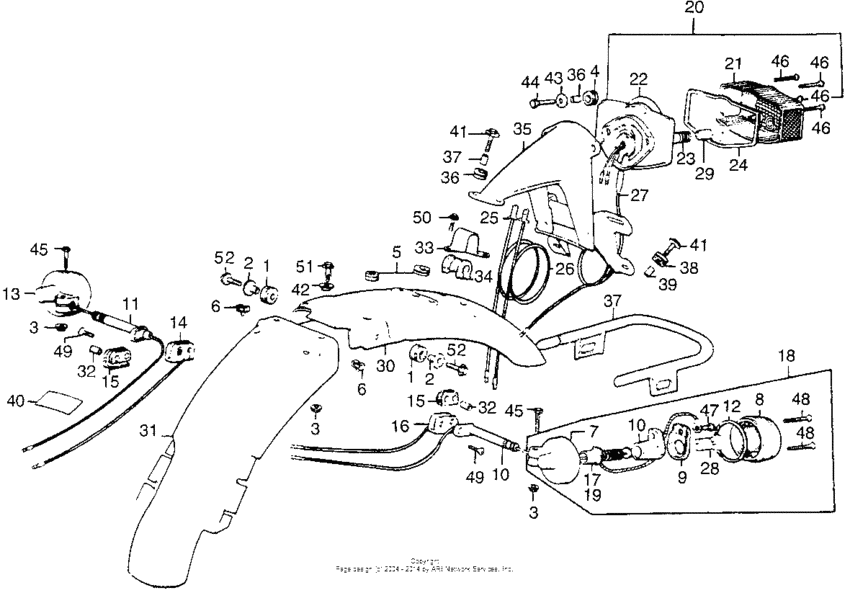

Rear fender + taillight + right rear turn signal Diagram Honda CL CL360
- Model code
- CL360K1 A
- Sales region
- USA
- Frame
- CL3602000001 -
- Engine Capacity
- 360
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17631-703-000
Rubber, tank cushion
|
17631-703-000 |
— | ||
|
2
|
2
17641-703-010
Collar,tank
|
17641-703-010 |
— | ||
|
3
|
3
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
4
|
4
31403-323-000 Rubber |
31403-323-000 |
from US $5.03 |
||
|
5
|
5
32983-011-000 Grommet, harn |
32983-011-000 |
from US $2.81 |
||
|
6
|
6
32985-300-000 Grommet, cable |
32985-300-000 |
from US $3.66 |
||
|
7
|
7
33401-341-701 Base,winker |
33401-341-701 |
from US $40.94 |
||
|
8
|
8
33402-268-672 Lens,winker |
33402-268-672 |
from US $10.66 |
||
|
9
|
9
33407-284-003
Socket,winker
|
33407-284-003 |
— | ||
|
10
|
10
33408-341-701
Rubber,winker
|
33408-341-701 |
— | ||
|
11
|
11
33441-369-000
Stay,rear winker
|
33441-369-000 |
— | ||
|
12
|
12
33443-268-671 Packing,lens |
33443-268-671 |
from US $2.44 |
||
|
13
|
13
33600-306-679 Winker assy 74ie |
33600-306-679 |
from US $60.55 |
||
|
14
|
14
33605-333-000
Stopper,r.winker
|
33605-333-000 |
— | ||
|
15
|
15
33606-074-010 Mount rumber |
33606-074-010 |
from US $5.18 |
||
|
16
|
16
33609-333-000
Stopper,l.winker
|
33609-333-000 |
— | ||
|
17
|
17
33610-306-670
Socket,rr,winker
|
33610-306-670 |
— | ||
|
18
|
18
33600-306-679 Winker assy 74ie |
33600-306-679 |
from US $60.55 |
||
|
18
|
18
33650-306-670 L,winker,assy |
33650-306-670 |
US $42.21 |
||
| replacement | |||||
|
18
|
18
33600-306-679 Winker assy 74ie |
33600-306-679 |
from US $60.55 |
||
|
19
|
19
33660-306-670 Socket,rr,winker |
33660-306-670 |
US $11.14 |
||
|
20
|
20
33701-354-670
Unit, tail light
|
33701-354-670 |
— | ||
|
21
|
21
33702-341-671 Lens,tail light |
33702-341-671 |
from US $56.29 |
||
|
22
|
22
33703-354-670
Base.,tail light
|
33703-354-670 |
— | ||
|
23
|
23
33708-098-000 Wire, taillight |
33708-098-000 |
US $7.84 |
||
|
24
|
24
33709-341-671
Packing,tail lt.
|
33709-341-671 |
— | ||
|
25
|
25
33710-333-000
Cord,stop light
|
33710-333-000 |
— | ||
|
26
|
26
33711-333-000
Cord,tail light
|
33711-333-000 |
— | ||
|
27
|
27
33712-300-003
Cord tail light
|
33712-300-003 |
— | ||
|
28
|
28
34905-268-671 Bulb (12v23w32cp) |
34905-268-671 |
from US $3.26 |
||
|
29
|
29
34906-MG9-771 Bulb (12v27/7w) |
34906-MG9-771 |
from US $5.10 |
||
|
30
|
30
80100-387-000
Fender comp,rear
|
80100-387-000 |
— | ||
|
31
|
31
80105-369-740
Fender b assy,rr.
|
80105-369-740 |
— | ||
|
32
|
32
80108-061-010 Collar a, rr. fender |
80108-061-010 |
from US $3.40 |
||
|
33
|
33
80111-369-000 Stay,rr.fender. |
80111-369-000 |
US $11.35 |
||
|
34
|
34
80112-329-010
Rubber,rear fend.
|
80112-329-010 |
— | ||
|
35
|
35
84701-341-670-B
Bracket,no plate
|
84701-341-670-B |
— | ||
|
36
|
36
84706-378-000
Collar,tail light
|
84706-378-000 |
— | ||
|
37
|
37
84710-369-000-B
Stay,no.bracket
|
84710-369-000-B |
— | ||
|
38
|
38
84905-333-000 Rubber, fender |
84905-333-000 |
from US $4.44 |
||
|
39
|
39
84906-118-000 Collar, number bracket setting |
84906-118-000 |
from US $2.37 |
||
|
40
|
40
87506-369-670
Mark,bat.caution
|
87506-369-670 |
— | ||
|
41
|
41
90122-369-000 Bolt, flange (6x25) |
90122-369-000 |
from US $5.48 |
||
|
42
|
42
90512-300-000 Washer (6x20) |
90512-300-000 |
from US $2.22 |
||
|
43
|
43
90581-310-000 Washer,18m/m |
90581-310-000 |
from US $2.74 |
||
|
44
|
44
92101-05025-0A Bolt, hex. (5x25) |
92101-05025-0A |
from US $0.47 |
||
|
45
|
45
92101-06025-0B Bolt, hex. (6x25) |
92101-06025-0B |
from US $0.67 |
||
|
46
|
46
93500-040-550-B Screw,pan,4x55 |
93500-040-550-B |
from US $0.59 |
||
|
47
|
47
93500-050-080-A ScrewPAN, 5X8 |
93500-050-080-A |
from US $0.37 |
||
|
48
|
48
93700-030-250-B Screw cross 3x25 |
93700-030-250-B |
from US $0.55 |
||
|
49
|
49
93700-060250B Screw, oval (6x25) |
93700-060250B |
from US $0.74 |
||
|
50
|
50
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
51
|
51
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
|
52
|
52
95701-080-200-0 Bolt, flange, 8x20 |
95701-080-200-0 |
from US $0.59 |
||
