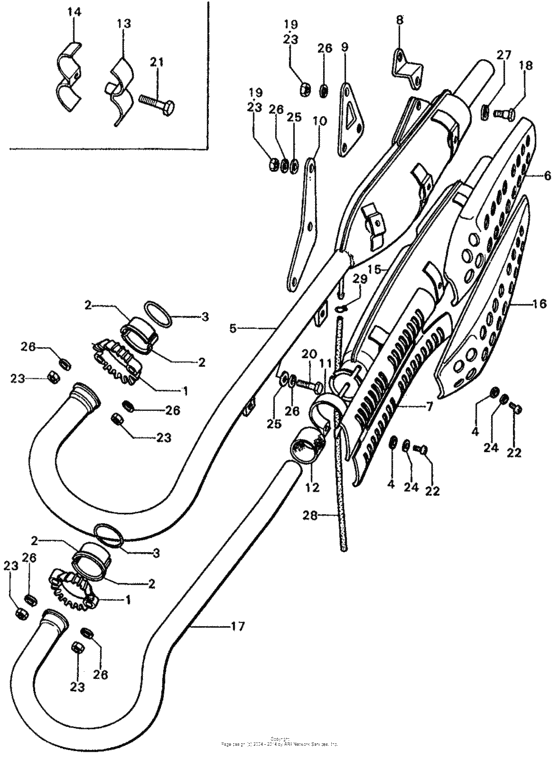

Muffler k5-k6 Diagram Honda CL CL450
- Model code
- CL450K5 A
- Sales region
- USA
- Frame
- CL4505000001 - CL4505019216
- Engine Capacity
- 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18231-292-020
Joint ex pipe
|
18231-292-020 |
— | ||
|
2
|
2
18233-283-010
Collar,pipe joint
|
18233-283-010 |
— | ||
|
3
|
3
18291-MM8-880 Gasket, ex. pipe |
18291-MM8-880 |
from US $4.46 |
||
|
4
|
4
18292-167-890 Packing, protector |
18292-167-890 |
from US $2.89 |
||
|
5
|
5
18300-347-677
Muffler comp.,ex.
|
18300-347-677 |
— | ||
|
6
|
6
18315-347-670
Protector,r muff.
|
18315-347-670 |
— | ||
|
7
|
7
18325-347-670
Protector,exhaust
|
18325-347-670 |
— | ||
|
8
|
8
18340-347-000
Stay a,muffler
|
18340-347-000 |
— | ||
|
9
|
9
18341-347-000
Stay b,muffler
|
18341-347-000 |
— | ||
|
10
|
10
18353-347-010
Bracket, muffler
|
18353-347-010 |
— | ||
|
11
|
11
18371-286-300
Band,r. muffler
|
18371-286-300 |
— | ||
|
12
|
12
18392-MK4-000 Gasket, muffler |
18392-MK4-000 |
from US $8.68 |
||
|
13
|
13
18395-294-000
Holder a,ex.pipe
|
18395-294-000 |
— | ||
|
14
|
14
18396-294-000
Holder b ex-pipe
|
18396-294-000 |
— | ||
|
15
|
15
18410-347-677
Muffler comp.,ex.
|
18410-347-677 |
— | ||
|
16
|
16
18415-347-670
Protector,l muff
|
18415-347-670 |
— | ||
|
17
|
17
18420-347-670
Pipe,l exhaust
|
18420-347-670 |
— | ||
|
18
|
18
90130-294-000
Bolt,hanger
|
90130-294-000 |
— | ||
|
20
|
20
92101-08020-0A BoltHEX., 8X20 |
92101-08020-0A |
from US $0.52 |
||
|
21
|
21
92101-08028-0A Bolt, hex., 8x28 |
92101-08028-0A |
from US $0.59 |
||
|
22
|
22
93500-060-144-J Screw, pan (6x14) |
93500-060-144-J |
from US $1.33 |
||
|
23
|
23
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
24
|
24
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
25
|
25
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
26
|
26
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
27
|
27
94111-12000 WasherSPRING, 12MM |
94111-12000 |
from US $0.44 |
||
|
28
|
28
95001-550-004-0
Tube,fuel5.5x1200
|
95001-550-004-0 |
— | ||
|
28
|
28
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
29
|
29
95002-50000 ClipTUBE(C9) |
95002-50000 |
from US $0.37 |
