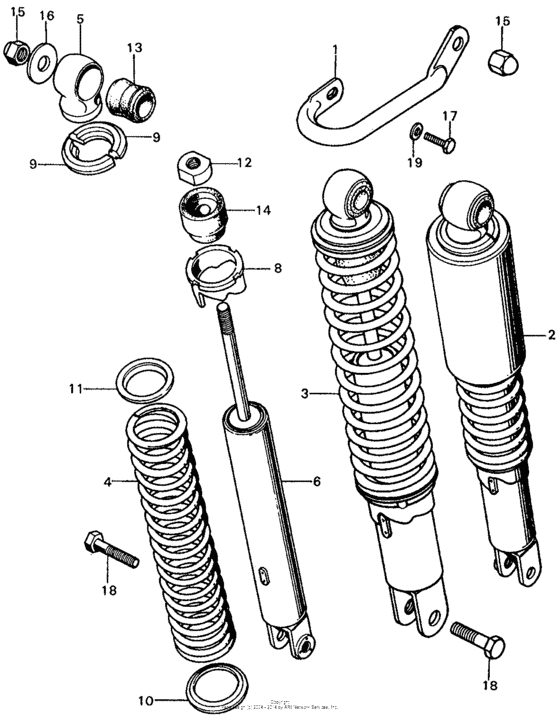

Rear shock absorber k5-k6 Diagram Honda CL CL450
- Model code
- CL450K5 A
- Sales region
- USA
- Frame
- CL4505000001 - CL4505019216
- Engine Capacity
- 450
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50316-292-000
Grip,side
|
50316-292-000 |
— | ||
|
2
|
2
52400-347-670
Cushion assy.,rr.
|
52400-347-670 |
— | ||
|
3
|
3
52400-347-670
Cushion assy.,rr.
|
52400-347-670 |
— | ||
|
4
|
4
52401-323-000
Spring,rr cushion
|
52401-323-000 |
— | ||
|
5
|
5
52403-312-000 Joint,upper |
52403-312-000 |
US $20.77 |
||
|
6
|
6
52410-323-000
Damper,rear
|
52410-323-000 |
— | ||
|
8
|
8
52422-292-000
Adjuster,cushion
|
52422-292-000 |
— | ||
|
9
|
9
52424-331-003 Stopper,cushion |
52424-331-003 |
US $10.23 |
||
|
10
|
10
52458-329-000 Seat,under spring |
52458-329-000 |
US $5.40 |
||
|
11
|
11
52459-312-003
Seat,rr.cushion
|
52459-312-003 |
— | ||
|
12
|
12
52482-312-000
Nut,lock 10mm
|
52482-312-000 |
— | ||
|
13
|
13
52484-292-000 Rubber, joint |
52484-292-000 |
from US $4 |
||
|
14
|
14
52517-358-771
Rubber, stopper
|
52517-358-771 |
— | ||
|
15
|
15
90309-315-000 Nut, flange (10mm) |
90309-315-000 |
from US $4.97 |
||
|
16
|
16
90521-292-000 Washer (10.3mm) |
90521-292-000 |
from US $3.63 |
||
|
17
|
17
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
18
|
18
93101-100-320-A
Bolt, hex. (10x32)
|
93101-100-320-A |
— | ||
|
19
|
19
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
