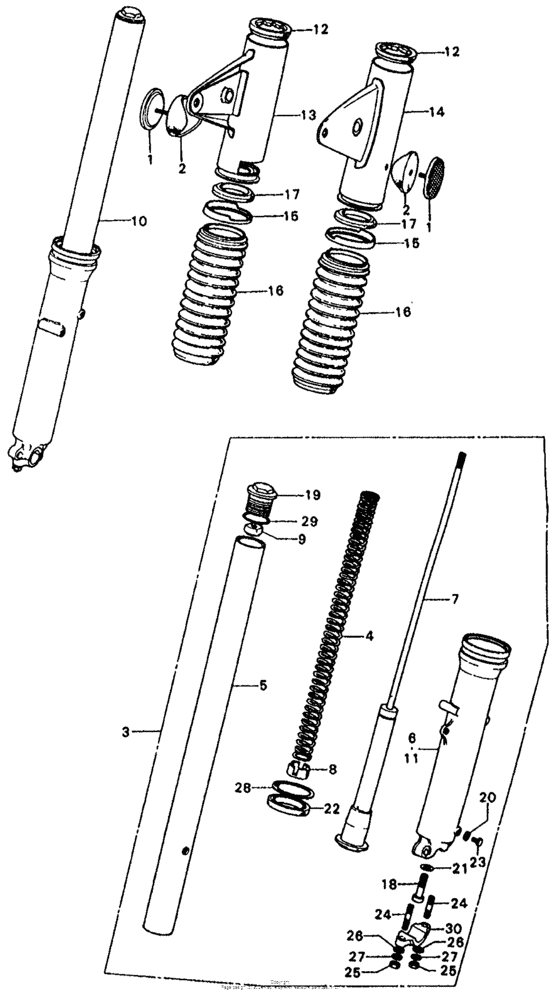

Front fork k5-k6 Diagram Honda CL CL450
- Model code
- CL450K6 A
- Sales region
- USA
- Frame
- CL4506000001 - CL4506005014
- Engine Capacity
- 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-340-670 Reflector,reflex |
33741-340-670 |
US $34.15 |
||
| replacement | |||||
|
1
|
1
33741-102-870 Reflector, fr. |
33741-102-870 |
from US $28.70 |
||
|
2
|
2
33743-341-670 Base,fr reflex |
33743-341-670 |
from US $5.66 |
||
|
3
|
3
51400-458-670
Fork assy., r. fr.
|
51400-458-670 |
— | ||
|
4
|
4
51401-323-010
Spring,fr cushion
|
51401-323-010 |
— | ||
|
5
|
5
51410-323-010
Pipe,front fork
|
51410-323-010 |
— | ||
|
6
|
6
51421-323-010
Case,r fr fork
|
51421-323-010 |
— | ||
|
7
|
7
51430-323-020
Damper comp
|
51430-323-020 |
— | ||
|
8
|
8
51461-323-010
Seat,cushion spg
|
51461-323-010 |
— | ||
|
9
|
9
51462-323-000
Nut,lock,8mm
|
51462-323-000 |
— | ||
|
10
|
10
51500-458-670
Fork Assy., L. Fr.
|
51500-458-670 |
— | ||
|
11
|
11
51521-323-010
Case,l fr fork
|
51521-323-010 |
— | ||
|
12
|
12
51601-300-000 Cushion fork |
51601-300-000 |
from US $14.28 |
||
|
13
|
13
51602-347-670XW
Cover,r fr fork
|
51602-347-670XW |
— | ||
|
14
|
14
51606-347-670XW Cover,l fr.fork |
51606-347-670XW |
US $146.71 |
||
|
15
|
15
51608-300-000 Rib front fork |
51608-300-000 |
from US $19.31 |
||
|
16
|
16
51611-300-000 Boots front fork |
51611-300-000 |
from US $46.65 |
||
|
17
|
17
51622-292-010 Cushion,forkcover |
51622-292-010 |
from US $7.99 |
||
|
18
|
18
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $4.44 |
||
|
19
|
19
90123-323-010
Bolt,front fork
|
90123-323-010 |
— | ||
|
20
|
20
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.37 |
||
|
21
|
21
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
22
|
22
91255-KBH-003 Seal,oil,35x48x11 |
91255-KBH-003 |
from US $13.17 |
||
|
23
|
23
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
24
|
24
92900-08028-3B Bolt, stud (8x50) |
92900-08028-3B |
from US $0.74 |
||
|
25
|
25
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
28
|
28
94521-48000 Cir clip,in 48mm |
94521-48000 |
US $1.48 |
||
|
29
|
29
9460850000 O-ring, 23x2.8 |
9460850000 |
from US $0.89 |
||
|
30
|
30
95014-41000 Holder,axle |
95014-41000 |
from US $7.70 |
||
