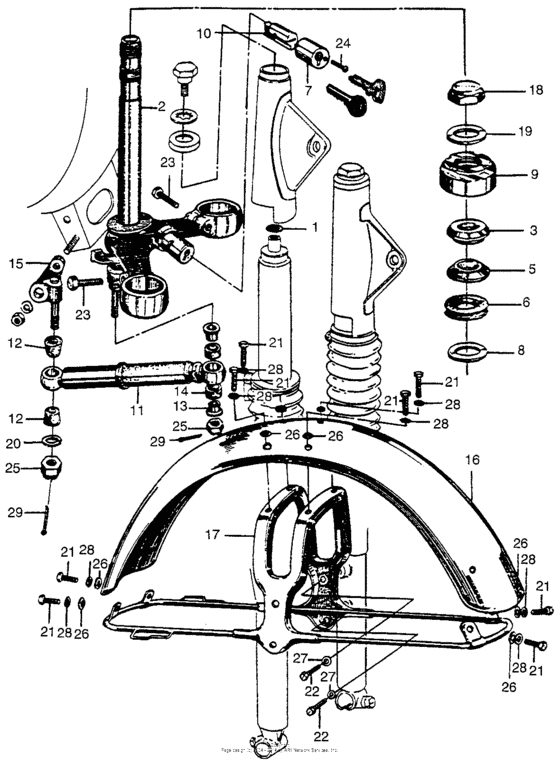

Steering stem + front fender Diagram Honda CL CL72
- Model code
- CL72 A
- Sales region
- USA
- Frame
- CL72100001 -
- Engine Capacity
- 72
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
9460810000 O-ring (8.4x2.4) |
9460810000 |
from US $0.74 |
||
|
2
|
2
53200-273-000-Z
Stem, steering
|
53200-273-000-Z |
— | ||
|
3
|
3
53211-268-010 Race, steering cone |
53211-268-010 |
from US $14.42 |
||
|
5
|
5
53212-250-010 Race, steering cone |
53212-250-010 |
from US $11.84 |
||
|
6
|
6
53214-250-000 Dust seal |
53214-250-000 |
US $3.18 |
||
| replacements | |||||
|
6
|
6
53124-250-000 Dust-seal |
53124-250-000 |
from US $3.77 |
||
|
6
|
6
53214-K0T-J00 DUST SEAL |
53214-K0T-J00 |
from US $4.79 |
||
|
7
|
7
53215-230-000
Cover,lock case
|
53215-230-000 |
— | ||
|
8
|
8
53215-250-000 Washer |
53215-250-000 |
from US $3.07 |
||
|
9
|
9
53220-273-000
Thread
|
53220-273-000 |
— | ||
|
10
|
10
53631-268-020
Spring
|
53631-268-020 |
— | ||
|
11
|
11
53700-273-000
Damper, steering
|
53700-273-000 |
— | ||
|
12
|
12
53731-268-810
Rubber
|
53731-268-810 |
— | ||
|
13
|
13
53700-273-000
Damper, steering
|
53700-273-000 |
— | ||
|
14
|
14
53700-273-000
Damper, steering
|
53700-273-000 |
— | ||
|
15
|
15
53773-273-000-B
Pin a *nh1*
Use from Frame SN 0020002 to 0317995 |
53773-273-000-B |
— | ||
|
15
|
15
53773-273-010-B
Pin a *nh1*
Use from Frame SN 1000001 |
53773-273-010-B |
— | ||
|
16
|
16
61101-273-310-S
Panel, fr. *nh10m*
Use from Frame SN 0020002 to 0317995 |
61101-273-310-S |
— | ||
|
16
|
16
61101-273-320-S
Panel, fr. *nh10m*
Use from Frame SN 1008851 |
61101-273-320-S |
— | ||
|
17
|
17
61102-273-300
Stay, fr. fender
Use from Frame SN 0020002 to 0317995 |
61102-273-300 |
— | ||
|
17
|
17
61102-273-310
Stay, fr. fender
Use from Frame SN 1008851 |
61102-273-310 |
— | ||
|
18
|
18
90304-415-000 Nut, steering stem |
90304-415-000 |
from US $12.58 |
||
|
19
|
19
90503-273-000
Washer, stem
|
90503-273-000 |
— | ||
|
20
|
20
90519-268-810
Washer, 11dia
|
90519-268-810 |
— | ||
|
21
|
21
92101-05012-0G Bolt, hex. (5x12) |
92101-05012-0G |
from US $0.37 |
||
|
22
|
22
92101-08016-0A Bolt, hex., 8x16 |
92101-08016-0A |
from US $0.52 |
||
|
23
|
23
92101-10036-0A
Bolt, hex. (10x36)
|
92101-10036-0A |
— | ||
|
24
|
24
93500-030-080-B Screw,cross,3x8 |
93500-030-080-B |
US $0.52 |
||
|
24
|
24
93500-030-080-2 Screw, cross, 3x8 |
93500-030-080-2 |
US $0.52 |
||
|
25
|
25
94012-08020
Nut slotted 8mm
|
94012-08020 |
— | ||
|
26
|
26
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
27
|
27
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
28
|
28
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
29
|
29
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.44 |
||
