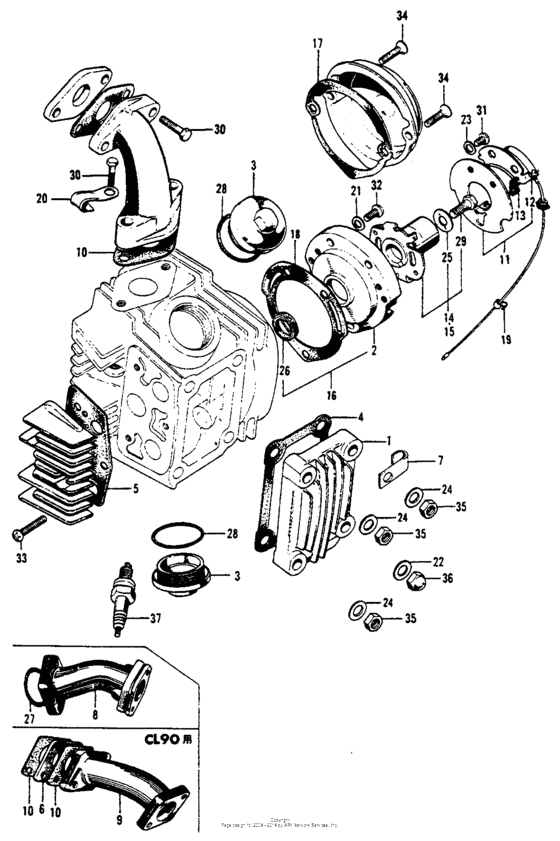

Cylinder head cover + points base Diagram Honda CL CL90
- Model code
- CL90 A
- Sales region
- USA
- Frame
- CL90106956 -
- Engine Capacity
- 90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12301-028-010
Cover, cylinder head
Use from Engine SN 106956 |
12301-028-010 |
— | ||
|
2
|
2
12332-028-040 Base, points |
12332-028-040 |
US $21.13 |
||
|
3
|
3
12361-028-000 Cap, valve adj. |
12361-028-000 |
from US $8.14 |
||
|
4
|
4
12391-121-630 Gasket, cyl hd cvrUse from Engine SN 106956 |
12391-121-630 |
from US $3.77 |
||
|
5
|
5
12394-121-630 Gasket, rUse from Engine SN 106956 |
12394-121-630 |
from US $3.40 |
||
|
6
|
6
16212-046-306
Insulator, in. pipe
Use from Engine SN 106956 |
16212-046-306 |
— | ||
|
9
|
9
17111-056-000
Pipe, inlet
Use from Engine SN 106596 |
17111-056-000 |
— | ||
|
10
|
10
17119-046-306 Gasket, in. pipeUse from Engine SN 106596 |
17119-046-306 |
from US $3.89 |
||
|
11
|
11
30200-107-014 Breaker,contactUse from Engine SN 106956 |
30200-107-014 |
from US $71.47 |
||
|
12
|
12
30202-028-003
Breaker, contact
Use from Engine SN 106956 |
30202-028-003 |
— | ||
|
12
|
12
30202-107-004 Breaker,contactUse from Engine SN 106956 |
30202-107-004 |
from US $49.64 |
||
|
12
|
12
30202-107-154 Breaker,contactUse from Engine SN 106956 |
30202-107-154 |
US $34 |
||
|
13
|
13
30205-028-003
Felt oil
Use up to Engine SN 106956 |
30205-028-003 |
— | ||
|
14
|
14
30220-028-004
Advancer, spark
Use from Engine SN 106956 to 210105 |
30220-028-004 |
— | ||
|
15
|
15
30220-053-154
Advancer,spark
Use from Engine SN 210106 |
30220-053-154 |
— | ||
|
15
|
15
30220-053-004
Advancer spark
Use from Engine SN 210106 |
30220-053-004 |
— | ||
|
16
|
16
30360-028-030 Base assy.,pointUse from Engine SN 275568 |
30360-028-030 |
US $32.23 |
||
|
17
|
17
30391-459-951 Gasket, point coverUse from Engine SN 106956 |
30391-459-951 |
from US $3.48 |
||
|
18
|
18
30392-028-306
Gasket, points base
Use from Engine SN 106956 |
30392-028-306 |
— | ||
|
19
|
19
32901-028-000
Clip
Use from Engine SN 106956 |
32901-028-000 |
— | ||
|
20
|
20
32906-028-000 Clip,ac generatorUse from Engine SN 106956 |
32906-028-000 |
US $3.85 |
||
|
21
|
21
90441-028-010 Washer, sealing, 6mmUse from Engine SN 106956 |
90441-028-010 |
from US $2.15 |
||
|
22
|
22
90442-028-000 Washer (8mm)Use from Engine SN 106956 |
90442-028-000 |
from US $1.22 |
||
|
23
|
23
90482-028-000 Washer, 5mmUse from Engine SN 106956 |
90482-028-000 |
from US $2.15 |
||
|
24
|
24
90483-028-000 Washer, 8mmUse from Engine SN 106956 |
90483-028-000 |
from US $1.92 |
||
|
25
|
25
90486-028-000 Washer, spark advancer settingUse from Engine SN 106956 |
90486-028-000 |
from US $2.65 |
||
|
26
|
26
91201-028-005 Oilseal, 13x22x5Use from Engine SN 106956 |
91201-028-005 |
from US $6.36 |
||
|
28
|
28
91304-HB3-003 O-ring (33.5x3.0)Use from Engine SN 106956 |
91304-HB3-003 |
from US $5.62 |
||
|
29
|
29
92101-06014-0A Bolt, hex., 6x14 |
92101-06014-0A |
from US $0.47 |
||
|
30
|
30
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
31
|
31
93500-050-100-A ScrewPAN, 5X10 |
93500-050-100-A |
from US $0.37 |
||
|
32
|
32
93500-050-120-A ScrewPAN, 5X12 |
93500-050-120-A |
from US $0.37 |
||
|
32
|
32
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
33
|
33
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
33
|
33
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
34
|
34
93700-050-250-2
Screw cr,5x25p0.9
|
93700-050-250-2 |
— | ||
|
34
|
34
93700-050-250-A Screw,oval,5x25 |
93700-050-250-A |
from US $0.44 |
||
|
35
|
35
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
35
|
35
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
36
|
36
94021-080-000-S NutCAP, 8MM |
94021-080-000-S |
from US $0.62 |
||
|
37
|
37
98066-58717 Plug,spark |
98066-58717 |
from US $3.81 |
