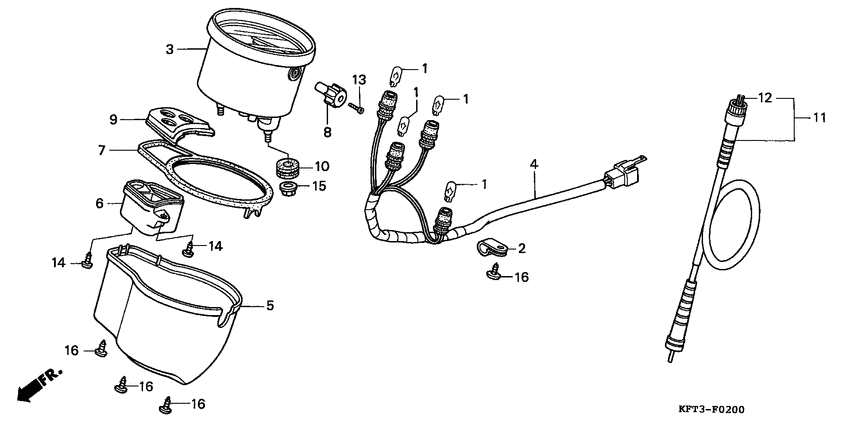

Meter Diagram Honda CLR125 City Fly
- Year
- 1998
- Model code
- CLR125W
- Sales region
- Europe
- Frame
- VTMJD18A0WE100001 - VTMJD18A0WE199999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34908-KFB-003 Bulb wedge base ( |
34908-KFB-003 |
US $2.07 |
||
|
2
|
2
37215-KAF-008 Clamp |
37215-KAF-008 |
from US $2.10 |
||
|
3
|
3
37210-KFT-621
Speedometer comp
|
37210-KFT-621 |
— | ||
|
4
|
4
37211-KFT-621
Socket comp
|
37211-KFT-621 |
— | ||
|
5
|
5
37212-KFT-621 Cover |
37212-KFT-621 |
US $14.82 |
||
|
6
|
6
37213-KFB-003 Case inner(p.box) |
37213-KFB-003 |
US $7.99 |
||
|
7
|
7
37214-KFB-003 Gasket |
37214-KFB-003 |
US $3.92 |
||
|
8
|
8
37220-MA6-008 Knob, trip |
37220-MA6-008 |
from US $7.84 |
||
|
9
|
9
37618-KFT-621
Upper case comp
|
37618-KFT-621 |
— | ||
|
10
|
10
37700-ME5-670 Rubber,meter set |
37700-ME5-670 |
US $2.66 |
||
|
11
|
11
44830-KFT-620
Cable assy,spdmt.
|
44830-KFT-620 |
— | ||
|
12
|
12
44831-KFT-620
Cable comp,inner
|
44831-KFT-620 |
— | ||
|
13
|
13
90158-KM7-911 Screw, pan (2x6) |
90158-KM7-911 |
from US $1.55 |
||
|
14
|
14
90160-MM8-611 Screw, tap (3x14) |
90160-MM8-611 |
from US $1.85 |
||
|
15
|
15
91616-KFT-620 Nut,flange m5 |
91616-KFT-620 |
US $1.41 |
||
|
16
|
16
93903-24310 ScrewTAPPING, 4X12 |
93903-24310 |
from US $0.37 |
