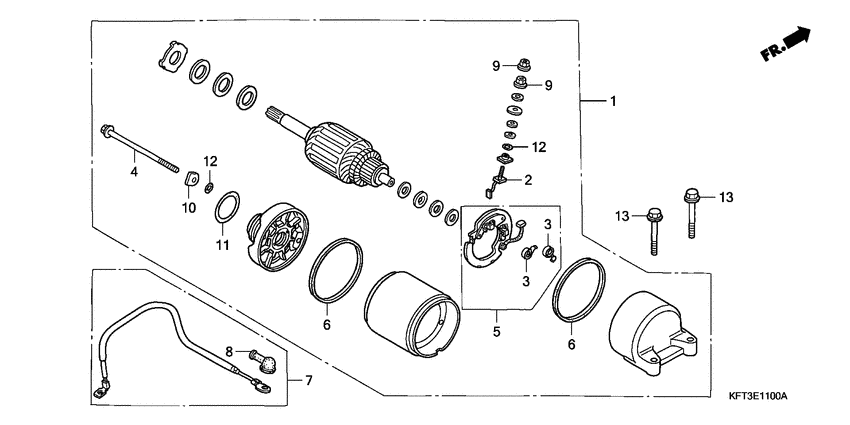

Starting motor Diagram Honda CLR125 City Fly
- Year
- 1998
- Model code
- CLR125W
- Sales region
- Europe
- Frame
- VTMJD18A0WE100001 - VTMJD18A0WE199999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31200-KCM-003 Motor assy starte |
31200-KCM-003 |
US $499.84 |
||
|
2
|
2
31201-KS5-901 Terminal set, brush |
31201-KS5-901 |
from US $11.88 |
||
|
3
|
3
31204-KS5-901 Spring, carbon brush |
31204-KS5-901 |
from US $3.18 |
||
|
4
|
4
31205-KL8-711 Bolt, setting |
31205-KL8-711 |
from US $2.74 |
||
|
5
|
5
31206-KW1-901 Holder set, brush |
31206-KW1-901 |
from US $16.46 |
||
|
6
|
6
31207-KS5-901 Ring |
31207-KS5-901 |
from US $3.63 |
||
|
7
|
7
32410-KFT-620
Cable start motor
|
32410-KFT-620 |
— | ||
|
8
|
8
32411-253-000 Cover, starter motor terminal |
32411-253-000 |
from US $4.29 |
||
| replacement | |||||
|
8
|
8
32411-230-000 Cover |
32411-230-000 |
from US $5.33 |
||
|
9
|
9
90071-MB0-000 Nut-washer, 6mm |
90071-MB0-000 |
from US $2.22 |
||
|
10
|
10
90122-MN4-008 Washer, steel plate |
90122-MN4-008 |
from US $1.92 |
||
|
11
|
11
91309-425-003 O-ring (24.4x3.1) |
91309-425-003 |
from US $3.92 |
||
| replacement | |||||
|
11
|
11
91312-MG7-003 O-ring (24.4x3.1) |
91312-MG7-003 |
from US $7.99 |
||
|
12
|
12
91320-MB0-000 O-ring |
91320-MB0-000 |
from US $2.12 |
||
|
13
|
13
95801-0602800 Bolt, flange, 6x28 |
95801-0602800 |
from US $0.59 |
||
