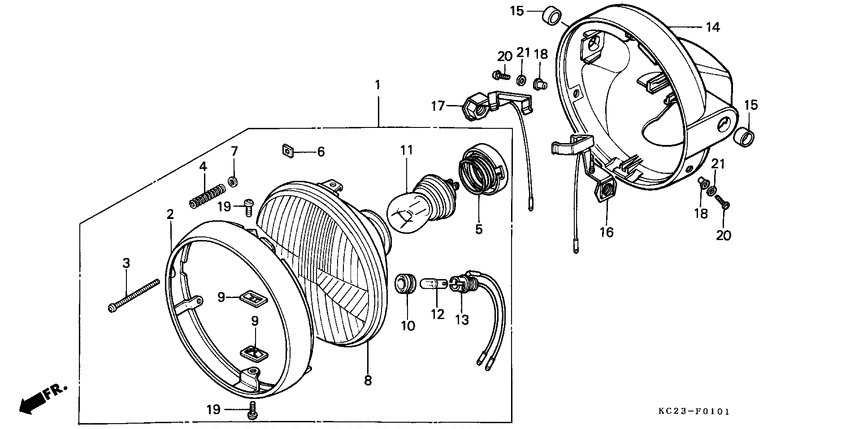

Headlight (G) Diagram Honda CM125
- Year
- 1982
- Model code
- CM125CC
- Sales region
- Germany
- Frame
- JC055000628 - JC055004804
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-442-611
Headlight assy
|
33100-442-611 |
— | ||
|
2
|
2
33101-443-611
Rim, headlight
|
33101-443-611 |
— | ||
|
3
|
3
33103-333-000 Screw (4mm) |
33103-333-000 |
from US $4.88 |
||
|
4
|
4
33107-333-000 Spring |
33107-333-000 |
from US $2.15 |
||
|
5
|
5
33114-413-601
Holder,lt.socket
|
33114-413-601 |
— | ||
|
6
|
6
33117-001-023 Nut, headlight beam adjusting |
33117-001-023 |
from US $2.59 |
||
|
7
|
7
33119-371-003 Washer |
33119-371-003 |
from US $2.81 |
||
|
8
|
8
33120-413-611
Headlight unit
|
33120-413-611 |
— | ||
|
9
|
9
33128-200-033
Nut, unit holder
|
33128-200-033 |
— | ||
|
10
|
10
33905-371-601 Rubber,joint |
33905-371-601 |
from US $3.26 |
||
|
11
|
11
34901-390-611
Bulb
|
34901-390-611 |
— | ||
|
12
|
12
34903-388-611 Bulb (12v4w) (t8/4) |
34903-388-611 |
from US $3.91 |
||
|
13
|
13
34904-303-003 Socket,position |
34904-303-003 |
US $11.99 |
||
|
14
|
14
61301-413-000ZA Case *nh1* |
61301-413-000ZA |
from US $112.71 |
||
|
15
|
15
61302-413-000
Collar,hd.lt.case
|
61302-413-000 |
— | ||
|
16
|
16
61303-KB4-000 Nut,l,h/d setting |
61303-KB4-000 |
US $14.21 |
||
|
17
|
17
61304-KB4-000
Nut,r,h/l setting
|
61304-KB4-000 |
— | ||
|
18
|
18
61304-292-000 Collar |
61304-292-000 |
from US $3.40 |
||
|
19
|
19
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
20
|
20
93500-050-160-B ScrewPAN, 5X16 |
93500-050-160-B |
from US $0.52 |
||
|
21
|
21
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
