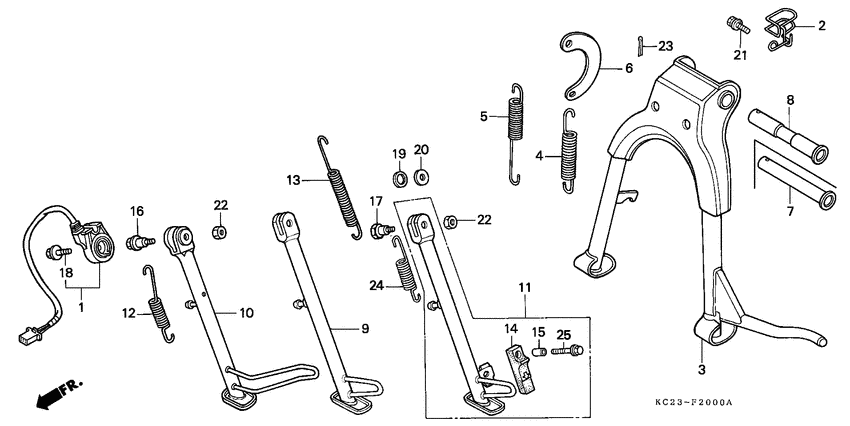

Stand Diagram Honda CM125
- Year
- 1993
- Model code
- CM125CP
- Sales region
- Switzerland
- Frame
- JC055600007 - JC055605425
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35700-KC2-305 Set,side stand sw |
35700-KC2-305 |
US $54.81 |
||
|
2
|
2
50150-KB4-000
Clamper,hose
|
50150-KB4-000 |
— | ||
|
3
|
3
50500-KC2-680
Stand comp.,main
|
50500-KC2-680 |
— | ||
|
4
|
4
50510-KK6-700 Spring, main stand |
50510-KK6-700 |
US $6.32 |
||
| replacement | |||||
|
4
|
4
50510-MT2-000 Spring, main stand |
50510-MT2-000 |
US $6.32 |
||
|
6
|
6
50523-KB4-000 Plate |
50523-KB4-000 |
from US $4.59 |
||
|
8
|
8
50526-KC1-920 Shaft |
50526-KC1-920 |
from US $9.47 |
||
|
10
|
10
50530-KC2-680
Bar comp.,side st
|
50530-KC2-680 |
— | ||
|
12
|
12
50541-MM4-000 Spring, side stand |
50541-MM4-000 |
from US $5.62 |
||
| replacement | |||||
|
12
|
12
50542-MZ2-000 Spring, side stand |
50542-MZ2-000 |
from US $7.40 |
||
|
16
|
16
90108-MK6-670 Bolt |
90108-MK6-670 |
from US $5.18 |
||
|
18
|
18
90147-MK6-671 Bolt, special (6x16) |
90147-MK6-671 |
US $0.51 |
||
| replacement | |||||
|
18
|
18
90147-MCE-950 Bolt, special (6x16) |
90147-MCE-950 |
from US $0.68 |
||
|
21
|
21
93412-0601208 Bolt-washer, 6x12 |
93412-0601208 |
from US $0.52 |
||
| replacement | |||||
|
21
|
21
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
22
|
22
90203-MF9-710 Nut, side stand |
90203-MF9-710 |
from US $1.87 |
||
|
23
|
23
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
23
|
23
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.49 |
||
