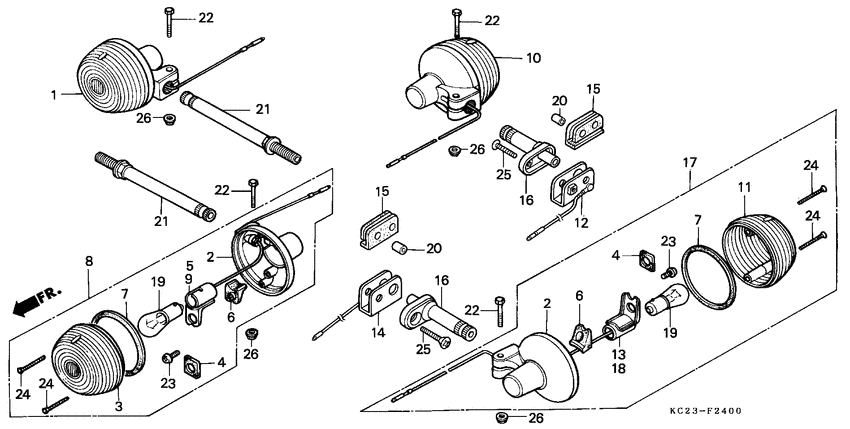

Winker Diagram Honda CM125
- Year
- 1993
- Model code
- CM125CP
- Sales region
- France
- Frame
- JC055600004 - JC055606079
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33400-413-603
Winker assy.,r fr
|
33400-413-603 |
— | ||
|
2
|
2
33401-292-003 Base,winker |
33401-292-003 |
US $32.88 |
||
| replacement | |||||
|
2
|
2
33401-341-701 Base,winker |
33401-341-701 |
from US $40.94 |
||
|
3
|
3
33402-268-672 Lens,winker |
33402-268-672 |
from US $10.66 |
||
|
4
|
4
33404-413-003
Rubber,cushion
|
33404-413-003 |
— | ||
|
5
|
5
33405-413-601
Socket,r.winker
|
33405-413-601 |
— | ||
|
6
|
6
33408-413-003
Rubber,base cush.
|
33408-413-003 |
— | ||
|
7
|
7
33443-268-671 Packing,lens |
33443-268-671 |
from US $2.44 |
||
|
8
|
8
33450-413-603
Winker assy.,l fr
|
33450-413-603 |
— | ||
|
9
|
9
33455-413-601
Socket,l.winker
|
33455-413-601 |
— | ||
|
10
|
10
33600-447-710
Winker assy,r.rr.
|
33600-447-710 |
— | ||
|
11
|
11
33602-323-632 Lens,rr.winker (s |
33602-323-632 |
US $8.47 |
||
|
13
|
13
33605-447-710
Socket,r.winker
|
33605-447-710 |
— | ||
|
17
|
17
33650-447-710
Winker.assy,l.rr.
|
33650-447-710 |
— | ||
|
18
|
18
33655-447-710
Socket,l.winker
|
33655-447-710 |
— | ||
|
19
|
19
34908-634-611 Bulb12V 21W) (ECE) (STANLEY |
34908-634-611 |
from US $2.66 |
||
|
21
|
21
90154-KC2-770 Bolt,fr.winker |
90154-KC2-770 |
US $17.46 |
||
|
22
|
22
93101-060-250-B Bolt, hex. (6x25) |
93101-060-250-B |
from US $0.67 |
||
|
23
|
23
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
24
|
24
93700-030-250-B Screw cross 3x25 |
93700-030-250-B |
from US $0.55 |
||
|
26
|
26
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
