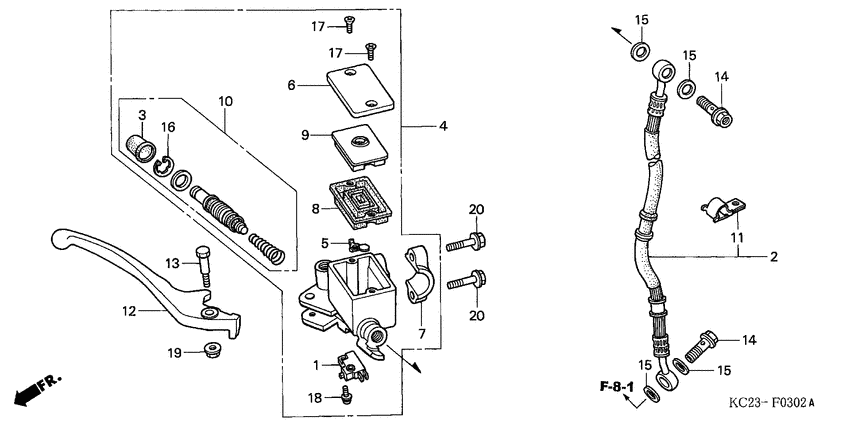

Fr. brake master cylinder (SI) Diagram Honda CM125
- Year
- 1994
- Model code
- CM125CR
- Sales region
- Singapore
- Frame
- JC055704229 - JC055799999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35340-MA5-671 Switch, fr. stop |
35340-MA5-671 |
from US $14.55 |
||
|
2
|
2
45125-KC2-960
Hose comp,fr brk
|
45125-KC2-960 |
— | ||
| replacement | |||||
|
2
|
2
45125-KC2-961
Hose comp,fr brk
|
45125-KC2-961 |
— | ||
|
3
|
3
45504-410-003 Boot |
45504-410-003 |
from US $4.90 |
||
|
4
|
4
45510-KC2-305
Sub assy,fr m/c
|
45510-KC2-305 |
— | ||
|
5
|
5
45512-MA6-006 Protector |
45512-MA6-006 |
from US $3.11 |
||
|
6
|
6
45513-KC2-961 Cap, master cylinder |
45513-KC2-961 |
from US $15.49 |
||
|
7
|
7
45517-KR3-901 Holder |
45517-KR3-901 |
from US $10.95 |
||
|
8
|
8
45520-MG7-006 Diaphragm |
45520-MG7-006 |
from US $7.70 |
||
|
9
|
9
45521-HA2-006 Plate, diaphragm |
45521-HA2-006 |
from US $7.55 |
||
|
10
|
10
45530-471-831 Master cylinder set |
45530-471-831 |
from US $17.53 |
||
|
11
|
11
52116-KC2-960 Clamper comp,brak |
52116-KC2-960 |
US $6.33 |
||
|
12
|
12
53175-KR3-601 Lever, r. handlebar |
53175-KR3-601 |
from US $26.52 |
||
|
13
|
13
90114-166-006 Bolt |
90114-166-006 |
from US $2.66 |
||
|
14
|
14
90145-MS9-611
Bolt, oil (10x22)
- 5713402 |
90145-MS9-611 |
— | ||
| replacement | |||||
|
14
|
14
90145-MS9-612 Bolt, oil (10x22)- 5713402 |
90145-MS9-612 |
from US $6.96 |
||
|
14
|
14
90145-MS9-612 Bolt, oil (10x22)5713403 - |
90145-MS9-612 |
from US $6.96 |
||
|
15
|
15
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
16
|
16
90651-MA5-671 Circlip |
90651-MA5-671 |
from US $2.59 |
||
|
17
|
17
93600-040-121-G
Screw
|
93600-040-121-G |
— | ||
| replacement | |||||
|
17
|
17
93600-040-120-G Screw, flat, 4x12 |
93600-040-120-G |
from US $0.37 |
||
|
18
|
18
93893-040-121-7
Screw-washer
|
93893-040-121-7 |
— | ||
| replacement | |||||
|
18
|
18
93893-040-120-7 Screw-washer4X12 |
93893-040-120-7 |
from US $0.52 |
||
|
19
|
19
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
20
|
20
96001-0602200 Bolt, flange, 6x22 |
96001-0602200 |
from US $0.74 |
||
