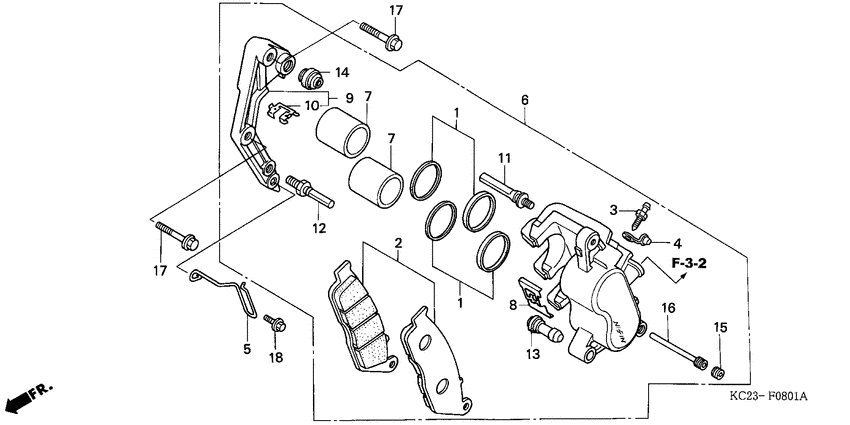

Front brake caliper (SI) Diagram Honda CM125
- Year
- 1994
- Model code
- CM125CR
- Sales region
- Singapore
- Frame
- JC055704229 - JC055799999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06451-GE2-405 Seal set, piston |
06451-GE2-405 |
from US $5 |
||
|
2
|
2
06455-MW3-405 Pad set |
06455-MW3-405 |
from US $49.52 |
||
| replacements | |||||
|
2
|
2
06455-MW3-406 Pad set,fr |
06455-MW3-406 |
from US $49.52 |
||
|
2
|
2
06455-MW3-415 Pad set |
06455-MW3-415 |
from US $52.99 |
||
|
3
|
3
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
4
|
4
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $1.40 |
||
|
5
|
5
44832-ME2-000 Clamp |
44832-ME2-000 |
from US $7.99 |
||
|
6
|
6
45100-KC2-961
Caliper assy,fr l
|
45100-KC2-961 |
— | ||
|
7
|
7
45107-MN5-006 Piston |
45107-MN5-006 |
from US $20.94 |
||
|
8
|
8
45108-ML7-922 Spring, pad |
45108-ML7-922 |
from US $6.51 |
||
|
9
|
9
45110-KBG-701 Bracket comp,l |
45110-KBG-701 |
US $82.38 |
||
|
10
|
10
45112-ML7-921 Retainer |
45112-ML7-921 |
from US $4.44 |
||
|
11
|
11
45131-ML7-921 Bolt a, pin |
45131-ML7-921 |
from US $5.94 |
||
|
12
|
12
45131-166-016 Pin, bolt |
45131-166-016 |
from US $4.29 |
||
|
13
|
13
45132-166-016 Bush, pin |
45132-166-016 |
from US $1.40 |
||
|
14
|
14
45133-MA3-006 Boot b |
45133-MA3-006 |
from US $2.54 |
||
|
15
|
15
45203-MG3-016 Plug, pin |
45203-MG3-016 |
from US $3.77 |
||
|
16
|
16
45215-ML7-922 Pin, hanger |
45215-ML7-922 |
from US $7.25 |
||
|
17
|
17
90101-KL8-761 Bolt,flange 10x32 |
90101-KL8-761 |
US $2.96 |
||
|
18
|
18
95701-060-100-7 BoltFLANGE, 6X10 |
95701-060-100-7 |
from US $0.52 |
||
