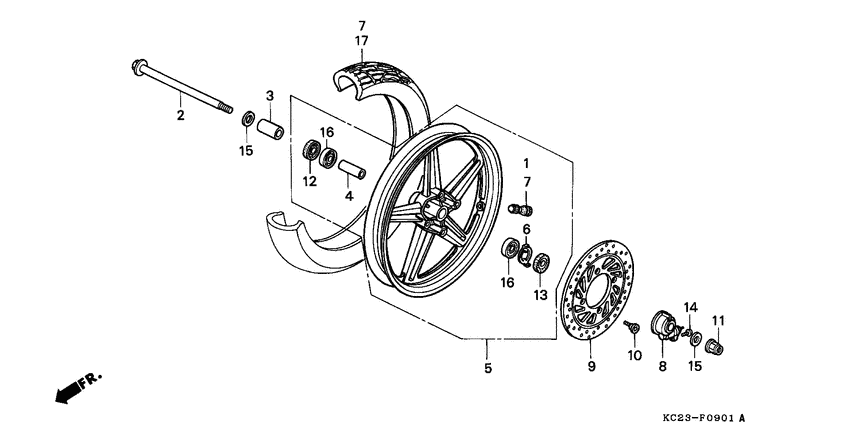

Front wheel (SI) Diagram Honda CM125
- Year
- 1994
- Model code
- CM125CR
- Sales region
- Singapore
- Frame
- JC055704229 - JC055799999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42753-ML7-003 Valve, rim |
42753-ML7-003 |
from US $7.84 |
||
|
1
|
1
42753-ML7-004 Valve, rim |
42753-ML7-004 |
from US $5.36 |
||
|
2
|
2
44301-KB4-000 Axle, fr. wheel |
44301-KB4-000 |
US $35.50 |
||
| replacement | |||||
|
2
|
2
44301-402-730 Axle, fr. wheel |
44301-402-730 |
US $26.66 |
||
|
3
|
3
44312-KB4-700 Collar,wheel side |
44312-KB4-700 |
from US $7.25 |
||
|
4
|
4
44620-KBG-700 Collar,fr axle di |
44620-KBG-700 |
US $5.71 |
||
|
5
|
5
44650-KBG-326ZB
Wheel set*nh168m*
|
44650-KBG-326ZB |
— | ||
|
6
|
6
44680-410-000 Retainer, gear box |
44680-410-000 |
from US $4.48 |
||
|
7
|
7
44710-KC2-961
Tire assy,fr(dun)
|
44710-KC2-961 |
— | ||
|
7
|
7
44710-KC2-962
Tire assy.
|
44710-KC2-962 |
— | ||
|
8
|
8
44800-MG5-672 Box assy.,speedom |
44800-MG5-672 |
US $70.26 |
||
|
9
|
9
45351-KBG-700 Disk,front brake |
45351-KBG-700 |
from US $236.64 |
||
| replacement | |||||
|
9
|
9
45351-KBG-J00 Disk,front brake |
45351-KBG-J00 |
from US $198.56 |
||
|
10
|
10
90105-MV9-003 Bolt, disk (8x24) |
90105-MV9-003 |
from US $3.85 |
||
|
11
|
11
90305-GE8-003 Nut, u (14mm) |
90305-GE8-003 |
from US $4.29 |
||
|
12
|
12
91252-MC7-003 Dust seal (22x42x7) |
91252-MC7-003 |
from US $6.07 |
||
|
13
|
13
91258-410-006 Dust seal (40x50x5) |
91258-410-006 |
US $9.91 |
||
| replacement | |||||
|
13
|
13
91258-410-013 Dust seal (40x50x5) |
91258-410-013 |
from US $3.60 |
||
|
13
|
13
91258-410-013 Dust seal (40x50x5) |
91258-410-013 |
from US $3.60 |
||
|
14
|
14
93700-050160A Screw, oval (5x16) |
93700-050160A |
from US $0.37 |
||
|
15
|
15
9410214000 Washer, plain, 14mm |
9410214000 |
from US $0.41 |
||
|
16
|
16
96140-6302010 Bearing (6302u) |
96140-6302010 |
from US $8.24 |
||
| replacement | |||||
|
16
|
16
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
||
|
17
|
17
44711-KB4-701
Tire,fr.(dunlop)
- 5715485 |
44711-KB4-701 |
— | ||
|
17
|
17
44711-KC2-962
Tire
- 5715485 |
44711-KC2-962 |
— | ||
|
17
|
17
44711-KB4-704
Tire,front (dun)
5715486 - |
44711-KB4-704 |
— | ||
|
17
|
17
44711-KC2-964
Tire
5715486 - |
44711-KC2-964 |
— | ||
