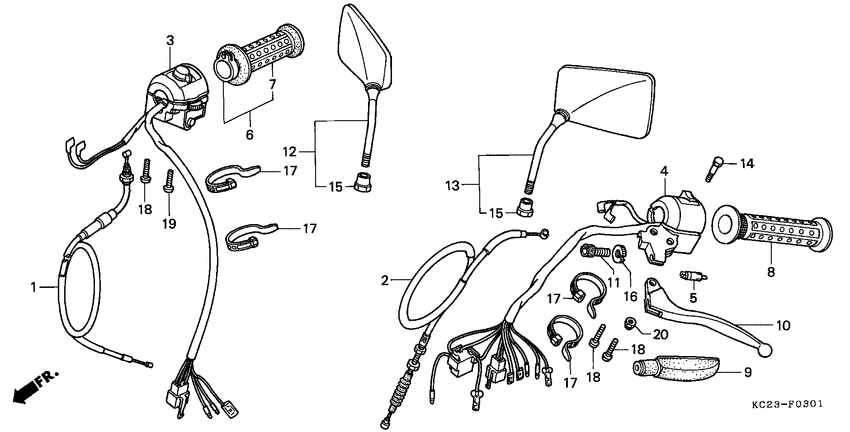

Handle lever/switch/cable (SI) Diagram Honda CM125
- Year
- 1994
- Model code
- CM125CR
- Sales region
- Singapore
- Frame
- JC055704229 - JC055799999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-KC2-960
Cable comp,throt.
|
17910-KC2-960 |
— | ||
|
2
|
2
22870-KC2-960 Cable comp.clutch |
22870-KC2-960 |
US $27.88 |
||
|
3
|
3
35150-KC2-960
Sw assy,lt.st.kil
- 5714717 |
35150-KC2-960 |
— | ||
|
3
|
3
35130-KC2-970
Switch assy
5714718 - |
35130-KC2-970 |
— | ||
|
4
|
4
35200-KC2-970
Sw assy,winker
|
35200-KC2-970 |
— | ||
|
5
|
5
35330-413-003 Switch, fr. lever |
35330-413-003 |
from US $14.96 |
||
|
6
|
6
53140-KC2-950
Pipe comp,throt
- 5721486 |
53140-KC2-950 |
— | ||
|
6
|
6
53140-KC2-960 Grip compTHROTTLE 5721487 - |
53140-KC2-960 |
US $21.41 |
||
|
7
|
7
53165-419-670
Grip,r.handle
|
53165-419-670 |
— | ||
|
8
|
8
53166-419-670 Grip,l.handle |
53166-419-670 |
US $14.50 |
||
|
9
|
9
53172-402-700 Cover, l |
53172-402-700 |
from US $10.56 |
||
|
10
|
10
53178-KY0-980
Lever,l strg hndl
|
53178-KY0-980 |
— | ||
|
11
|
11
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.85 |
||
|
12
|
12
88110-KR3-670 Mirror,r back |
88110-KR3-670 |
US $48.73 |
||
|
13
|
13
88120-KR3-670 Mirror,l back |
88120-KR3-670 |
US $48.73 |
||
|
14
|
14
90114-310-000 Bolt |
90114-310-000 |
from US $5.77 |
||
|
15
|
15
90314-323-000 Nut, lock |
90314-323-000 |
from US $3.02 |
||
|
16
|
16
90321-315-670 Nut, fixing |
90321-315-670 |
from US $5.83 |
||
|
17
|
17
90650-KV6-003 BandWIRE, 95MM |
90650-KV6-003 |
from US $3.03 |
||
|
18
|
18
93500-050-250-A ScrewPAN, 5X25 |
93500-050-250-A |
from US $0.44 |
||
|
19
|
19
93500-050350A Screw, pan, 5x35 |
93500-050350A |
from US $0.44 |
||
|
20
|
20
94021-060-200-S NutCAP, 6MM |
94021-060-200-S |
US $1.58 |
||
| replacement | |||||
|
20
|
20
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
