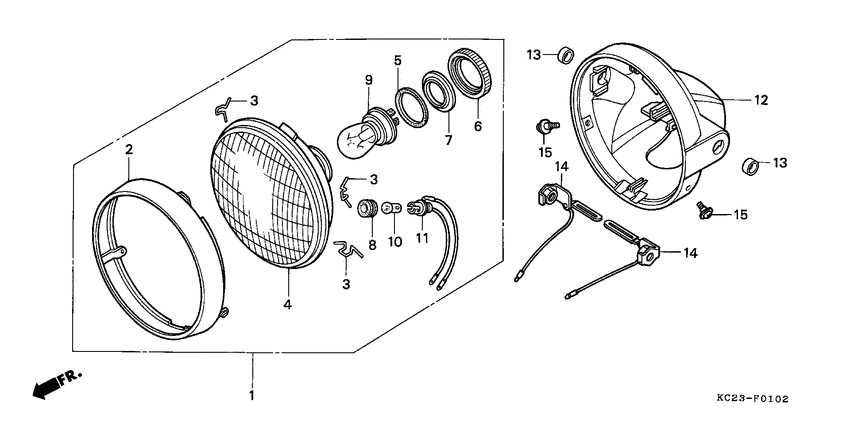

Headlight (SI) Diagram Honda CM125
- Year
- 1994
- Model code
- CM125CR
- Sales region
- Singapore
- Frame
- JC055704229 - JC055799999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-443-003 Headlight assy- 5714717 |
33100-443-003 |
US $160.48 |
||
|
1
|
1
33100-KC2-970
Headlight assy
5714718 - |
33100-KC2-970 |
— | ||
|
2
|
2
33101-443-003 Rim, headlight |
33101-443-003 |
US $46.65 |
||
|
3
|
3
33108-369-003 Spring,head light |
33108-369-003 |
US $2.66 |
||
|
4
|
4
33120-413-003 Head light unit- 5714717 |
33120-413-003 |
US $65.42 |
||
|
4
|
4
33120-KC2-970
Headlight unit
5714718 - |
33120-KC2-970 |
— | ||
|
5
|
5
33123-333-003 Packing,bulb |
33123-333-003 |
US $3.70 |
||
|
6
|
6
33131-333-000 Holder,head lt |
33131-333-000 |
US $4.74 |
||
|
7
|
7
33132-333-003 Washer |
33132-333-003 |
US $2.59 |
||
|
8
|
8
33905-371-601 Rubber,joint- 5714717 |
33905-371-601 |
from US $3.26 |
||
|
9
|
9
34901-377-003 Bulb,head light |
34901-377-003 |
US $20.13 |
||
|
10
|
10
34903-071-003 Bulb,light.marker- 5714717 |
34903-071-003 |
from US $5.24 |
||
|
11
|
11
34904-303-003 Socket,position- 5714717 |
34904-303-003 |
US $11.99 |
||
|
12
|
12
61301-KC2-960 Case,head light |
61301-KC2-960 |
US $84.49 |
||
|
13
|
13
61302-465-770 Colr, headlight case |
61302-465-770 |
from US $2.29 |
||
|
14
|
14
61303-KB4-000 Nut,l,h/d setting |
61303-KB4-000 |
US $14.21 |
||
|
15
|
15
91508-KC2-960 Screw,pan 5x10.5 |
91508-KC2-960 |
US $2.15 |
