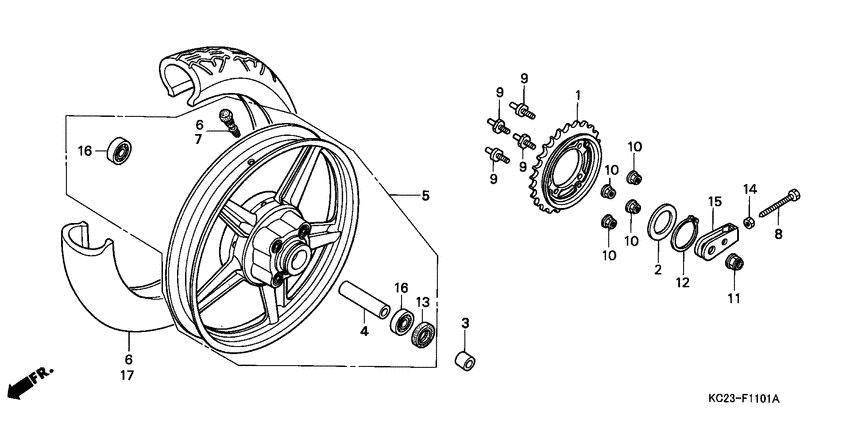

Rear wheel (SI) Diagram Honda CM125
- Year
- 1994
- Model code
- CM125CR
- Sales region
- Singapore
- Frame
- JC055704229 - JC055799999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41200-KC2-960
Sprkt comp,final
|
41200-KC2-960 |
— | ||
|
2
|
2
41202-KB4-000 Washer (58x67x2) |
41202-KB4-000 |
from US $4.44 |
||
|
3
|
3
42312-KK4-000 Colr, rr. wheel side |
42312-KK4-000 |
from US $7.55 |
||
|
4
|
4
42620-KB4-000 Collar, rr. |
42620-KB4-000 |
from US $7.70 |
||
|
5
|
5
42650-KBG-326ZB
Wheel set*nh168m*
|
42650-KBG-326ZB |
— | ||
|
6
|
6
42710-KC2-961
Tire assy,rr(dun)
|
42710-KC2-961 |
— | ||
|
6
|
6
42710-KC2-962
Tire assy.
|
42710-KC2-962 |
— | ||
|
7
|
7
42753-ML7-003 Valve, rim |
42753-ML7-003 |
from US $7.84 |
||
|
7
|
7
42753-ML7-004 Valve, rim |
42753-ML7-004 |
from US $5.36 |
||
|
8
|
8
90119-258-000 Bolt,chain adjust |
90119-258-000 |
from US $5.48 |
||
|
9
|
9
90128-KK4-000 Bolt, flange (10x66) |
90128-KK4-000 |
from US $3.96 |
||
|
10
|
10
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
11
|
11
90305-GE8-003 Nut, u (14mm) |
90305-GE8-003 |
from US $4.29 |
||
|
12
|
12
90664-216-000 Circlip (58mm) |
90664-216-000 |
from US $5.18 |
||
|
13
|
13
91257-230-003 Oil seal (28x42x7) |
91257-230-003 |
from US $8.29 |
||
|
13
|
13
91257-230-005 Oil seal (28x42x7) |
91257-230-005 |
US $10.40 |
||
| replacement | |||||
|
13
|
13
91257-230-003 Oil seal (28x42x7) |
91257-230-003 |
from US $8.29 |
||
|
14
|
14
94001-060-000-S
Nut
|
94001-060-000-S |
— | ||
| replacement | |||||
|
14
|
14
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
15
|
15
95014-16000 Adjuster g,chain |
95014-16000 |
US $5.48 |
||
|
16
|
16
96140-6302010 Bearing (6302u) |
96140-6302010 |
from US $8.24 |
||
| replacement | |||||
|
16
|
16
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
||
|
17
|
17
42711-KB4-701
Tire,rr.(dunlop)
- 5715487 |
42711-KB4-701 |
— | ||
|
17
|
17
42711-KC2-962
Tire
- 5715487 |
42711-KC2-962 |
— | ||
|
17
|
17
42711-KB4-704
Tire,rear (dun)
5715488 - |
42711-KB4-704 |
— | ||
|
17
|
17
42711-KC2-964
Tire
5715488 - |
42711-KC2-964 |
— | ||
