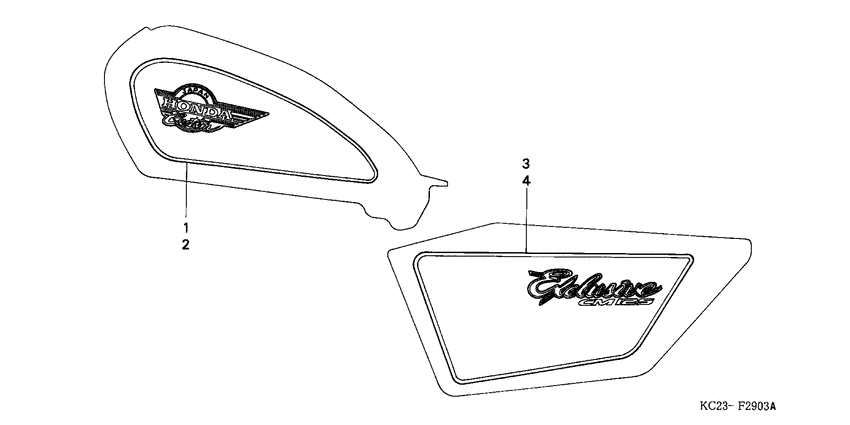

Stripe (4) Diagram Honda CM125
- Year
- 1994
- Model code
- CM125CR
- Sales region
- Singapore
- Frame
- JC055704229 - JC055799999
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87111-KC2-960ZA
Stripe,r f*type1*
|
87111-KC2-960ZA |
— | ||
|
1
|
1
87111-KC2-960ZB
Stripe,r f*type2*
|
87111-KC2-960ZB |
— | ||
|
1
|
1
87111-KC2-960ZC
Stripe,r f*type3*
|
87111-KC2-960ZC |
— | ||
|
2
|
2
87112-KC2-960ZA
Stripe,l f*type1*
|
87112-KC2-960ZA |
— | ||
|
2
|
2
87112-KC2-960ZB
Stripe,l f*type2*
|
87112-KC2-960ZB |
— | ||
|
2
|
2
87112-KC2-960ZC
Stripe,l f*type3*
|
87112-KC2-960ZC |
— | ||
|
3
|
3
87136-KC2-960ZA
Stripe,r s*type1*
|
87136-KC2-960ZA |
— | ||
|
3
|
3
87136-KC2-960ZB
Stripe,r s*type2*
|
87136-KC2-960ZB |
— | ||
|
3
|
3
87136-KC2-960ZC
Stripe,r s*type3*
|
87136-KC2-960ZC |
— | ||
|
4
|
4
87137-KC2-960ZA
Stripe,l s*type1*
|
87137-KC2-960ZA |
— | ||
|
4
|
4
87137-KC2-960ZB
Stripe,l s*type2*
|
87137-KC2-960ZB |
— | ||
|
4
|
4
87137-KC2-960ZC
Stripe,l s*type3*
|
87137-KC2-960ZC |
— |
