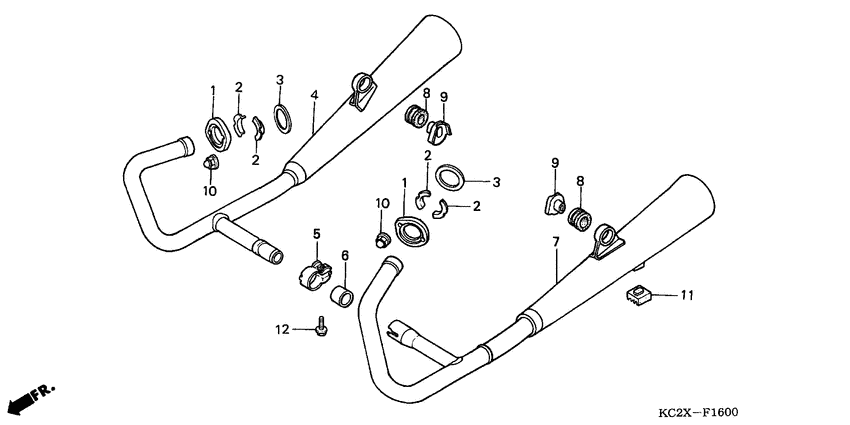

Exhaust muffler Diagram Honda CM125
- Year
- 1999
- Model code
- CM125CX
- Sales region
- Europe
- Frame
- JH2JC05A*XK000001 - JH2JC05A*XK099999
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18231-KEN-670 Joint, ex. pipe |
18231-KEN-670 |
from US $13.38 |
||
|
2
|
2
18233-KEN-670 Colr, ex. pipe joint |
18233-KEN-670 |
from US $3.63 |
||
|
3
|
3
18291-MN5-650 Gasket, ex. pipe |
18291-MN5-650 |
from US $3.08 |
||
|
4
|
4
18300-KC2-F00 Muff.comp r exh. |
18300-KC2-F00 |
US $261.89 |
||
|
5
|
5
18373-461-000 Band, ex. pipe |
18373-461-000 |
from US $27.34 |
||
|
6
|
6
18391-HB7-000 Gasket, muffler |
18391-HB7-000 |
from US $8.01 |
||
|
7
|
7
18400-KC2-F00
Muff.comp l exh.
|
18400-KC2-F00 |
— | ||
|
8
|
8
18421-KC2-000 Rub,muffler mtg. |
18421-KC2-000 |
US $3.85 |
||
|
9
|
9
18422-KC2-000
Collar,muff. mtg.
|
18422-KC2-000 |
— | ||
|
10
|
10
90304-438-000 Nut, cap, 6mm |
90304-438-000 |
from US $4.29 |
||
|
11
|
11
9501161000 Rubber a, stand stopper |
9501161000 |
from US $0.74 |
||
|
12
|
12
95701-080-200-0 Bolt, flange, 8x20 |
95701-080-200-0 |
from US $0.59 |
