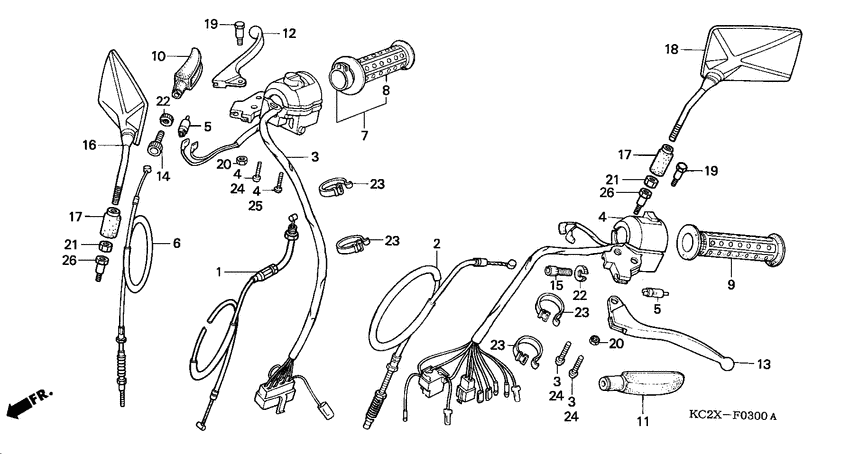

Handle/lever/clutch/ cable Diagram Honda CM125
- Year
- 1999
- Model code
- CM125CX
- Sales region
- Europe
- Frame
- JH2JC05A*XK000001 - JH2JC05A*XK099999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-KC2-680
Cable comp,throt.
|
17910-KC2-680 |
— | ||
|
2
|
2
22870-KB4-000 Cable,clutch |
22870-KB4-000 |
from US $26.66 |
||
|
3
|
3
35015-KC2-F00
Sw set,lt st kill
|
35015-KC2-F00 |
— | ||
|
4
|
4
35020-KC2-F00
Sw set,winker
|
35020-KC2-F00 |
— | ||
|
5
|
5
35330-413-003 Switch, fr. lever |
35330-413-003 |
from US $14.96 |
||
|
6
|
6
45450-KC2-F01
Cable comp,fr brk
|
45450-KC2-F01 |
— | ||
|
7
|
7
53140-KC2-950
Pipe comp,throt
|
53140-KC2-950 |
— | ||
|
8
|
8
53165-419-670
Grip,r.handle
|
53165-419-670 |
— | ||
|
9
|
9
53166-419-670 Grip,l.handle |
53166-419-670 |
US $14.50 |
||
|
10
|
10
53171-402-700 Cover, r |
53171-402-700 |
from US $10.88 |
||
|
11
|
11
53172-402-700 Cover, l |
53172-402-700 |
from US $10.56 |
||
|
12
|
12
53175-KY0-980 Lever, r. handlebar |
53175-KY0-980 |
from US $25.98 |
||
|
13
|
13
53178-KY0-980
Lever,l strg hndl
|
53178-KY0-980 |
— | ||
|
14
|
14
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.85 |
||
|
15
|
15
53192-312-000 Bolt |
53192-312-000 |
from US $9.32 |
||
|
16
|
16
88210-KB4-621
Mirror comp r
|
88210-KB4-621 |
— | ||
|
17
|
17
88113-KB4-620 Cover, lock nut |
88113-KB4-620 |
US $7.34 |
||
|
18
|
18
88220-KB4-621
Mirror comp l
|
88220-KB4-621 |
— | ||
|
19
|
19
90114-310-000 Bolt |
90114-310-000 |
from US $5.77 |
||
|
20
|
20
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $3.03 |
||
|
21
|
21
90301-KB4-731 Nut,hex 10mm lh |
90301-KB4-731 |
US $3.16 |
||
|
22
|
22
90321-315-670 Nut, fixing |
90321-315-670 |
from US $5.83 |
||
|
23
|
23
90650-KV6-003 BandWIRE, 95MM |
90650-KV6-003 |
from US $3.03 |
||
|
24
|
24
93500-050-250-A ScrewPAN, 5X25 |
93500-050-250-A |
from US $0.44 |
||
|
25
|
25
93500-050350A Screw, pan, 5x35 |
93500-050350A |
from US $0.44 |
||
|
26
|
26
88219-KB4-730 Lower,stay |
88219-KB4-730 |
US $10.79 |
