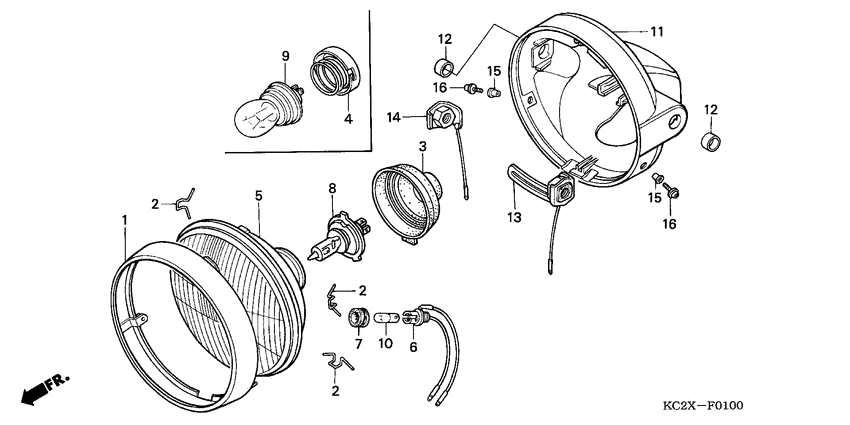

Headlight Diagram Honda CM125
- Year
- 1999
- Model code
- CM125CX
- Sales region
- Europe
- Frame
- JH2JC05A*XK000001 - JH2JC05A*XK099999
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33101-442-601
Rim,headlight
|
33101-442-601 |
— | ||
|
2
|
2
33108-369-003 Spring,head light |
33108-369-003 |
US $2.66 |
||
|
3
|
3
33112-MM9-013 Cover, rubber |
33112-MM9-013 |
from US $12.19 |
||
|
5
|
5
33120-KC2-F01
Unit,head light
|
33120-KC2-F01 |
— | ||
|
6
|
6
33150-KA8-680
Socket,position
|
33150-KA8-680 |
— | ||
|
7
|
7
33905-371-601 Rubber,joint |
33905-371-601 |
from US $3.26 |
||
|
8
|
8
34901-MC7-602 Bulb (12v 60/55w) |
34901-MC7-602 |
from US $45.32 |
||
|
10
|
10
34903-388-611 Bulb (12v4w) (t8/4) |
34903-388-611 |
from US $3.91 |
||
|
11
|
11
61301-413-000ZA Case *nh1* |
61301-413-000ZA |
from US $112.71 |
||
|
12
|
12
61302-465-770 Colr, headlight case |
61302-465-770 |
from US $2.29 |
||
|
13
|
13
61303-KB4-000 Nut,l,h/d setting |
61303-KB4-000 |
US $14.21 |
||
|
14
|
14
61304-KB4-000
Nut,r,h/l setting
|
61304-KB4-000 |
— | ||
|
15
|
15
61304-379-690 Collar |
61304-379-690 |
from US $3.55 |
||
|
16
|
16
93892-050-160-7 Screw-washer5X16 |
93892-050-160-7 |
from US $0.44 |
