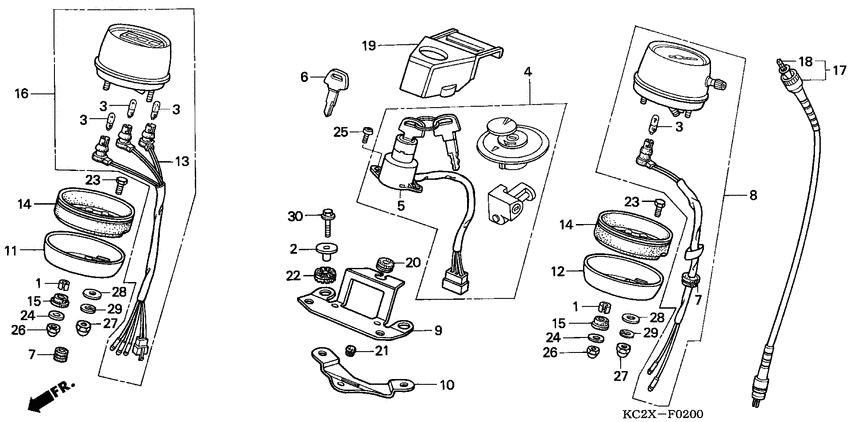

Meter Diagram Honda CM125
- Year
- 1999
- Model code
- CM125CX
- Sales region
- Europe
- Frame
- JH2JC05A*XK000001 - JH2JC05A*XK099999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17237-KC2-000 Collar a, a/clnr |
17237-KC2-000 |
from US $2.46 |
||
|
2
|
2
17535-KB4-000 Collar,cover set |
17535-KB4-000 |
from US $3.78 |
||
|
3
|
3
34908-GA7-701 Bulb, wedge base (t10) (12v 3.4w) (nippon seiki) |
34908-GA7-701 |
from US $2.15 |
||
| replacement | |||||
|
3
|
3
37237-SA5-003 Bulb14V 3.4W) (NS |
37237-SA5-003 |
from US $2.15 |
||
|
4
|
4
35010-KC2-F00
Key set
|
35010-KC2-F00 |
— | ||
|
5
|
5
35100-KC2-681
Sw.assy.,comb
|
35100-KC2-681 |
— | ||
|
6
|
6
35121-GZ5-003 Key, blank (type1) |
35121-GZ5-003 |
from US $8.73 |
||
| replacement | |||||
|
6
|
6
35121-GE2-770 Key, blank (type1) |
35121-GE2-770 |
from US $10.21 |
||
|
6
|
6
35122-GZ5-003 Key, blank (type2) |
35122-GZ5-003 |
from US $8.73 |
||
| replacement | |||||
|
6
|
6
35122-GE2-770 Key, blank (type2) |
35122-GE2-770 |
from US $10.21 |
||
|
7
|
7
37115-453-000 Grommet, cord |
37115-453-000 |
US $2.96 |
||
|
8
|
8
37200-KC2-730
Speedometer assy
|
37200-KC2-730 |
— | ||
|
9
|
9
37211-KB4-008
Pl,meter set
|
37211-KB4-008 |
— | ||
|
10
|
10
37212-KB4-000
Stay,meter set
|
37212-KB4-000 |
— | ||
|
11
|
11
37212-447-000 Ring, r. |
37212-447-000 |
from US $18.36 |
||
|
12
|
12
37213-447-000 Ring, l. |
37213-447-000 |
from US $17.54 |
||
|
13
|
13
37222-KC2-F01
Socket comp.
|
37222-KC2-F01 |
— | ||
|
14
|
14
37242-323-701 Rubber, meter |
37242-323-701 |
from US $15.37 |
||
|
15
|
15
37244-307-670 Rubber |
37244-307-670 |
from US $3.55 |
||
|
16
|
16
37650-KC2-F01
Indicator assy
|
37650-KC2-F01 |
— | ||
|
17
|
17
44830-KB4-000
Cable,speedometer
|
44830-KB4-000 |
— | ||
| replacement | |||||
|
17
|
17
44830-MG7-000 Cable, speedometer |
44830-MG7-000 |
US $25.57 |
||
|
18
|
18
44831-KB4-000 Cable, speedometer |
44831-KB4-000 |
from US $6.21 |
||
|
19
|
19
53132-KC2-680
Cover,ignition
|
53132-KC2-680 |
— | ||
|
20
|
20
53133-KB4-000 Grommet |
53133-KB4-000 |
from US $2.29 |
||
|
21
|
21
61110-388-000 Plug, hole |
61110-388-000 |
from US $5.13 |
||
|
22
|
22
84703-425-000 Rubber |
84703-425-000 |
from US $3.77 |
||
|
23
|
23
90159-356-000 Bolt, meter setting |
90159-356-000 |
from US $5.18 |
||
|
24
|
24
90538-KC2-890
Washer,special,6m
|
90538-KC2-890 |
— | ||
|
25
|
25
93500-060120G Screw, pan, 6x12 |
93500-060120G |
from US $0.44 |
||
|
26
|
26
94021-060-000-S NutCAP, 6MM |
94021-060-000-S |
from US $0.59 |
||
| replacement | |||||
|
26
|
26
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
27
|
27
94021-080-000-S NutCAP, 8MM |
94021-080-000-S |
from US $0.62 |
||
|
28
|
28
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
29
|
29
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
30
|
30
96001-0602507 Bolt, flange (6x25) |
96001-0602507 |
from US $0.59 |
||
