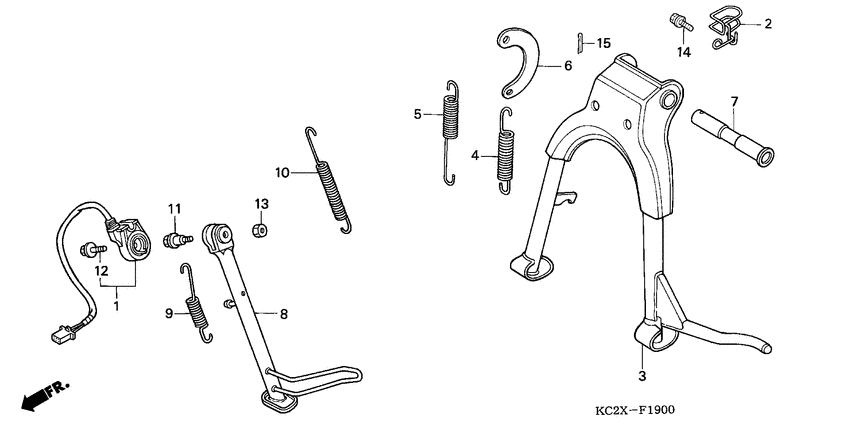

Stand Diagram Honda CM125
- Year
- 1999
- Model code
- CM125CX
- Sales region
- Europe
- Frame
- JH2JC05A*XK000001 - JH2JC05A*XK099999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35070-KC2-F00
Sw set,side stand
|
35070-KC2-F00 |
— | ||
|
2
|
2
50150-KB4-000
Clamper,hose
|
50150-KB4-000 |
— | ||
|
3
|
3
50500-KC2-680
Stand comp.,main
|
50500-KC2-680 |
— | ||
|
4
|
4
50510-KC2-F00
Spg,main stand
|
50510-KC2-F00 |
— | ||
|
5
|
5
50520-413-610
Sub spg,mainstand
|
50520-413-610 |
— | ||
|
6
|
6
50523-KB4-000 Plate |
50523-KB4-000 |
from US $4.59 |
||
|
7
|
7
50526-KC1-920 Shaft |
50526-KC1-920 |
from US $9.47 |
||
|
8
|
8
50530-KC2-680
Bar comp.,side st
|
50530-KC2-680 |
— | ||
|
9
|
9
50541-KE8-000 Spring, side stand |
50541-KE8-000 |
from US $2.96 |
||
|
10
|
10
50542-438-000 Sub-spring |
50542-438-000 |
from US $3.08 |
||
|
11
|
11
90108-MK6-670 Bolt |
90108-MK6-670 |
from US $5.18 |
||
|
12
|
12
90147-MCE-950 Bolt, special (6x16) |
90147-MCE-950 |
from US $0.82 |
||
|
13
|
13
90203-MF9-710 Nut, side stand |
90203-MF9-710 |
from US $3.18 |
||
|
14
|
14
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
15
|
15
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
15
|
15
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
