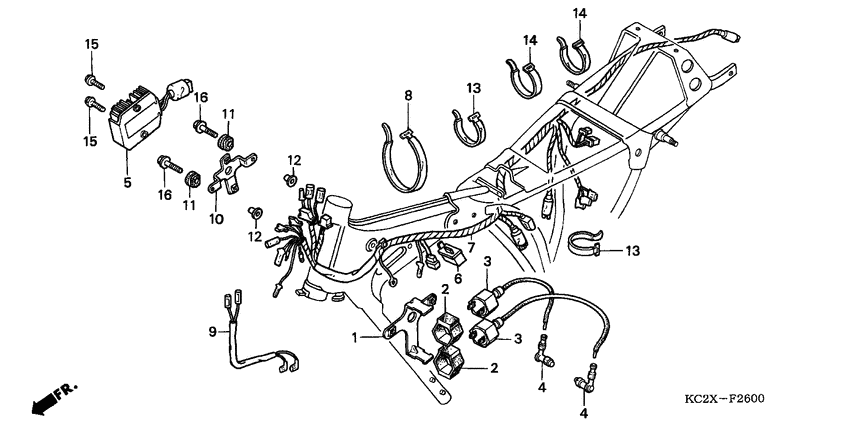

Wire harness/ignition coil Diagram Honda CM125
- Year
- 1999
- Model code
- CM125CX
- Sales region
- Europe
- Frame
- JH2JC05A*XK000001 - JH2JC05A*XK099999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30506-KC1-700
Stay,ignition
|
30506-KC1-700 |
— | ||
|
2
|
2
30506-KK4-000 Suspension |
30506-KK4-000 |
US $7.99 |
||
| replacement | |||||
|
2
|
2
30506-VM6-000
Suspension
|
30506-VM6-000 |
— | ||
|
3
|
3
30510-KC2-720 Coil comp |
30510-KC2-720 |
US $58.71 |
||
|
4
|
4
30700-KB4-010 Cap,noise suppre |
30700-KB4-010 |
US $16.42 |
||
| replacement | |||||
|
4
|
4
30700-KE2-942 Cap, spark plug |
30700-KE2-942 |
from US $21.78 |
||
|
5
|
5
31600-KC2-681 Reg,rect.assy |
31600-KC2-681 |
US $187.28 |
||
|
6
|
6
31700-196-000 Rectifier comp., silicon |
31700-196-000 |
from US $21.08 |
||
|
7
|
7
32100-KC2-F00
Harness,wire
|
32100-KC2-F00 |
— | ||
|
8
|
8
32171-KC1-700 Band,wire harness |
32171-KC1-700 |
US $3.63 |
||
|
9
|
9
38105-KC2-680
Sub cord,horn
|
38105-KC2-680 |
— | ||
|
10
|
10
50132-KB4-000
Stay,regulator
|
50132-KB4-000 |
— | ||
|
11
|
11
80101-283-000 Rubber, rr. fender cushion |
80101-283-000 |
from US $4.29 |
||
|
12
|
12
90501-KC2-750 Washer,regulator |
90501-KC2-750 |
from US $1.55 |
||
|
13
|
13
90650-MA6-720 Band.harness |
90650-MA6-720 |
from US $2.89 |
||
|
14
|
14
90651-MA6-720 BandHARNESS |
90651-MA6-720 |
from US $3.26 |
||
|
15
|
15
95701-060-200-7 BoltFLANGE, 6X20 |
95701-060-200-7 |
from US $0.58 |
||
|
16
|
16
95701-060-220-7 BoltFLANGE, 6X22 |
95701-060-220-7 |
from US $0.59 |
||
