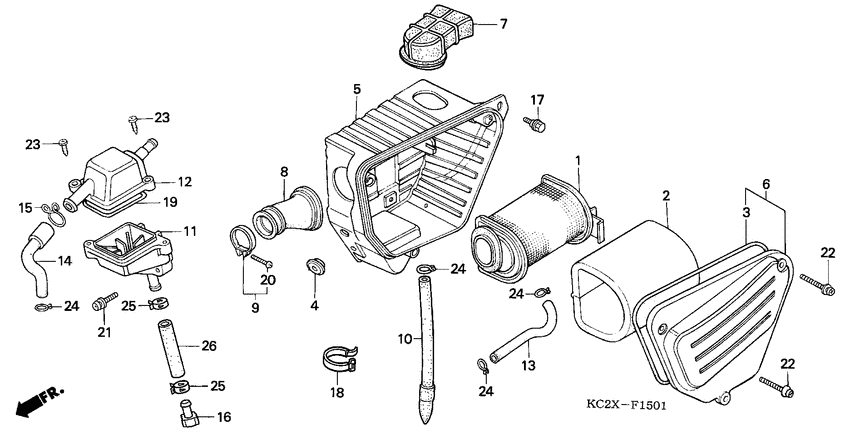

Air cleaner (2) Diagram Honda CM125
- Year
- 1999
- Model code
- CM125CX
- Sales region
- Switzerland
- Frame
- JH2JC05B*XK000001 - JH2JC05B*XK099999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17210-KC2-780
Holder comp.,elem
|
17210-KC2-780 |
— | ||
|
2
|
2
17213-471-010 Element,air clean |
17213-471-010 |
from US $16.32 |
||
|
3
|
3
17219-KB4-000 Seal |
17219-KB4-000 |
from US $6.51 |
||
|
4
|
4
17225-415-300 Grommet, tube |
17225-415-300 |
from US $3.88 |
||
|
5
|
5
17230-KC2-F00 Case comp.AIR CLEANER |
17230-KC2-F00 |
US $143.62 |
||
|
6
|
6
17235-KC2-S10
Cover sub assy
|
17235-KC2-S10 |
— | ||
|
7
|
7
17240-KC2-F00
Duct,air/c
|
17240-KC2-F00 |
— | ||
|
8
|
8
17253-KC2-000
Tube,air/c conn.
|
17253-KC2-000 |
— | ||
|
9
|
9
17255-303-010 Band a, a/clnr tube |
17255-303-010 |
from US $6.10 |
||
|
10
|
10
17336-KB4-000 Tube, drain |
17336-KB4-000 |
US $9.18 |
||
|
11
|
11
17361-471-760 Chamber, breather |
17361-471-760 |
from US $13.06 |
||
|
12
|
12
17362-KC2-650 Cover, br. chamber |
17362-KC2-650 |
from US $11.72 |
||
|
13
|
13
17365-471-760
Tube,breath joint
|
17365-471-760 |
— | ||
|
14
|
14
17368-KC2-650 Tube, breather |
17368-KC2-650 |
from US $4.23 |
||
|
15
|
15
17369-KB4-670 ClipBREATHER TUBE |
17369-KB4-670 |
from US $2.29 |
||
|
16
|
16
17370-419-700 Plug, breather tube |
17370-419-700 |
from US $3.27 |
||
|
17
|
17
90116-ME9-000 Bolt, flange (6mm) |
90116-ME9-000 |
from US $1.60 |
||
|
18
|
18
90652-KT1-771 Band, wire (black) |
90652-KT1-771 |
from US $2.29 |
||
|
19
|
19
91305-KB4-670 Seal, br. chamber |
91305-KB4-670 |
from US $3.55 |
||
|
20
|
20
93500-050-200-G ScrewPAN, 5X20 |
93500-050-200-G |
from US $0.36 |
||
|
21
|
21
93891-0602807 Screw-washer (6x28) |
93891-0602807 |
from US $0.59 |
||
|
22
|
22
93891-0603507 Screw-washer (6x35) |
93891-0603507 |
from US $0.62 |
||
|
23
|
23
9390135480 Screw, tap (5x20) |
9390135480 |
from US $0.37 |
||
|
24
|
24
9500202130 Clip, tube (b12.5) |
9500202130 |
from US $0.52 |
||
|
25
|
25
95002-410-500-8 ClampTUBE(D10.5) |
95002-410-500-8 |
from US $0.78 |
||
|
26
|
26
95003-230-233-1 Tube,vinyl,8x12x2 |
95003-230-233-1 |
US $1.41 |
