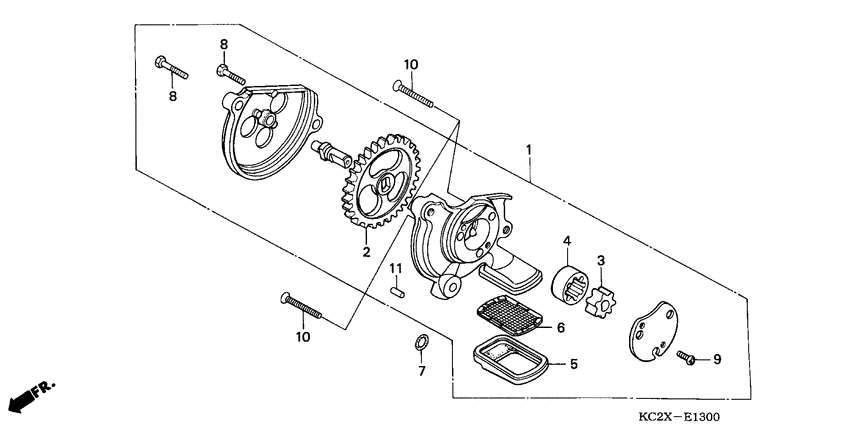

Oil pump Diagram Honda CM125
- Year
- 1999
- Model code
- CM125CX
- Sales region
- Switzerland
- Frame
- JH2JC05B*XK000001 - JH2JC05B*XK099999
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-402-010 Pump assy., oil |
15100-402-010 |
US $160.48 |
||
|
2
|
2
15131-399-000 Gear a,oil pump |
15131-399-000 |
US $37.94 |
||
|
3
|
3
15331-399-000
Rotor, oil pump inner (yamada)
|
15331-399-000 |
— | ||
|
4
|
4
15332-399-000
Rotor, oil pump outer (yamada)
|
15332-399-000 |
— | ||
|
5
|
5
15421-399-000 Holder, screen |
15421-399-000 |
from US $6.07 |
||
|
6
|
6
15422-399-000 Screen, oil filter |
15422-399-000 |
from US $8.14 |
||
|
7
|
7
91319-323-000 O-ring (6x3) |
91319-323-000 |
from US $3.18 |
||
|
8
|
8
92101-05020-0A Bolt, hex., 5x20 |
92101-05020-0A |
from US $0.38 |
||
|
9
|
9
93500-050-101-A ScrewPAN, 5X10 |
93500-050-101-A |
from US $0.37 |
||
| replacement | |||||
|
9
|
9
93500-050-100-A ScrewPAN, 5X10 |
93500-050-100-A |
from US $0.37 |
||
|
10
|
10
93600-060320A Screw, flat (6x32) |
93600-060320A |
from US $0.52 |
||
|
11
|
11
94303-04065 Pin cDOWEL, 4X6.5 |
94303-04065 |
from US $0.81 |
||
