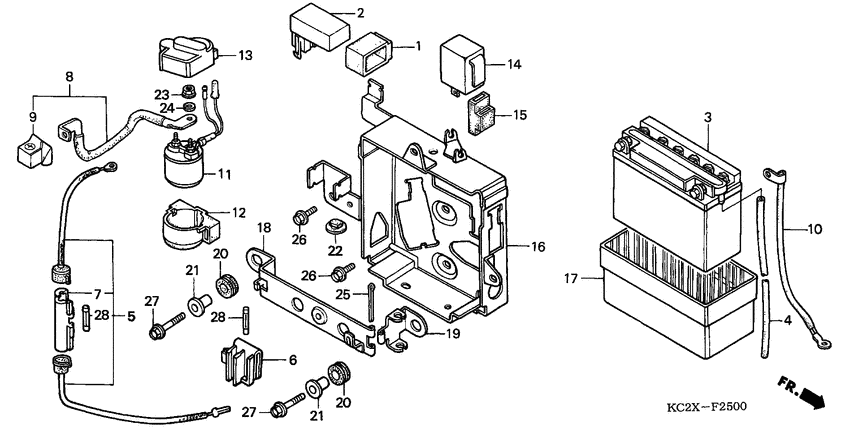

Battery Diagram Honda CM125
- Year
- 1999
- Model code
- CM125CX
- Sales region
- France
- Frame
- JH2JC05A*XK000001 - JH2JC05A*XK099999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30401-HA0-000
Cushion, c.d.i. unit
|
30401-HA0-000 |
— | ||
| replacement | |||||
|
1
|
1
30401-KYY-900 CUSHION |
30401-KYY-900 |
from US $4.82 |
||
|
2
|
2
30410-KC2-681
Unit comp,cdi
|
30410-KC2-681 |
— | ||
|
3
|
3
31500-KC1-921
Battery 12n9
|
31500-KC1-921 |
— | ||
|
4
|
4
31502-KB4-670
Tube,bat.breather
|
31502-KB4-670 |
— | ||
|
5
|
5
32101-KC2-000
Sub cord a
|
32101-KC2-000 |
— | ||
|
6
|
6
32113-167-000
Holder,fuse
|
32113-167-000 |
— | ||
|
7
|
7
32120-465-000 Case,15z fuse |
32120-465-000 |
US $4.07 |
||
|
8
|
8
32401-KB4-000
Cable,start bat
|
32401-KB4-000 |
— | ||
|
9
|
9
32412-KB4-000 Cover,bat.termina |
32412-KB4-000 |
US $4.55 |
||
|
10
|
10
32602-KB4-000 Cable,batt earth |
32602-KB4-000 |
US $17.04 |
||
|
11
|
11
35850-KC2-950
Sw.assy,start mag
|
35850-KC2-950 |
— | ||
|
12
|
12
35856-425-000 Rubber |
35856-425-000 |
from US $5.92 |
||
|
13
|
13
35857-KB4-000
Cover,start sw
|
35857-KB4-000 |
— | ||
|
14
|
14
38301-KJ6-743 Relay, turn signal |
38301-KJ6-743 |
US $73.93 |
||
| replacement | |||||
|
14
|
14
38301-KG0-024 Relay, turn signal |
38301-KG0-024 |
from US $49.10 |
||
|
14
|
14
38301-MG2-008 Relay, turn signal |
38301-MG2-008 |
from US $44.10 |
||
|
15
|
15
38306-GE8-008 Suspension, winker relay (denso) |
38306-GE8-008 |
from US $5.18 |
||
|
15
|
15
38306-KK4-000 Suspension, winker relay (mitsuba) |
38306-KK4-000 |
from US $3.18 |
||
|
16
|
16
50325-KB4-000
Tray,battery
|
50325-KB4-000 |
— | ||
|
17
|
17
50326-471-000 Cushion,battery |
50326-471-000 |
US $14.28 |
||
|
18
|
18
50327-KC2-000 Band,battery |
50327-KC2-000 |
US $13.72 |
||
|
19
|
19
50328-KB4-000 Hinge,band |
50328-KB4-000 |
US $6.17 |
||
|
20
|
20
61103-357-000 Rubber, fr. fender mounting |
61103-357-000 |
from US $0.14 |
||
|
21
|
21
80109-367-690 Collar c6.3, setting |
80109-367-690 |
from US $5.48 |
||
|
22
|
22
83618-323-000 Rubber, battery box |
83618-323-000 |
from US $1.40 |
||
|
23
|
23
94070-06080 Nut-washer6MM |
94070-06080 |
from US $0.52 |
||
|
24
|
24
94111-06800 WasherSPRING, 6MM |
94111-06800 |
from US $0.37 |
||
|
25
|
25
9420130400 Pin, cotter (3.0x40) |
9420130400 |
from US $0.44 |
||
| replacement | |||||
|
25
|
25
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
26
|
26
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
27
|
27
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
28
|
28
98200-11500 Fuse (15a) |
98200-11500 |
from US $0.59 |
||
