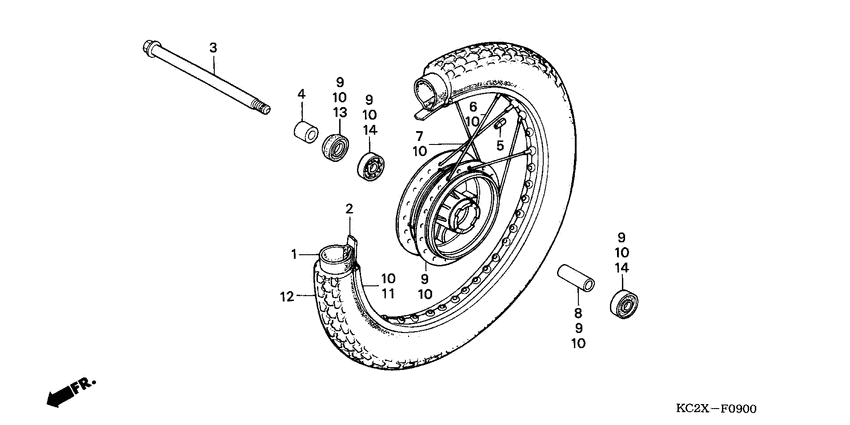

Front wheel Diagram Honda CM125
- Year
- 1999
- Model code
- CM125CX
- Sales region
- France
- Frame
- JH2JC05A*XK000001 - JH2JC05A*XK099999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42712-287-003 Tube3251350-18tr6 |
42712-287-003 |
US $13.01 |
||
| replacement | |||||
|
1
|
1
42712-446-631
Tube,tire
|
42712-446-631 |
— | ||
|
1
|
1
42712-401-681 Tube (3.25/3.50-18) |
42712-401-681 |
US $15.20 |
||
| replacement | |||||
|
1
|
1
42712-KT1-671
Tube (100/100-18)
|
42712-KT1-671 |
— | ||
|
2
|
2
42713-304-003 Flap (1.40/1.60-18) |
42713-304-003 |
US $9.78 |
||
|
2
|
2
42713-401-681 Flap, tire (1.40x18) |
42713-401-681 |
US $7.91 |
||
|
3
|
3
44301-402-730 Axle, fr. wheel |
44301-402-730 |
US $26.66 |
||
|
4
|
4
44312-402-000 Colr, fr. wheel side |
44312-402-000 |
from US $7.25 |
||
|
5
|
5
44606-283-000 Balancer (20g) |
44606-283-000 |
from US $6.48 |
||
|
6
|
6
44610-KC2-405
Spoke set,a10x158
|
44610-KC2-405 |
— | ||
|
7
|
7
44611-KC2-405
Spoke set (a10x15
|
44611-KC2-405 |
— | ||
|
8
|
8
44620-230-000 Collar, fr |
44620-230-000 |
from US $6.22 |
||
|
9
|
9
44635-KC2-F00ZA Hub sub a*nh146m* |
44635-KC2-F00ZA |
US $216.83 |
||
|
10
|
10
44650-KC2-F00ZA
Wheel sub assy.
|
44650-KC2-F00ZA |
— | ||
|
11
|
11
44701-KB4-003
Rim, fr. wheel
|
44701-KB4-003 |
— | ||
| replacement | |||||
|
11
|
11
42701-413-671
Rim, rr. wheel
|
42701-413-671 |
— | ||
|
12
|
12
44711-KB4-004
Tire,fr
|
44711-KB4-004 |
— | ||
|
12
|
12
44711-KC2-951
Tire,fr(bs)
|
44711-KC2-951 |
— | ||
|
13
|
13
91252-230-003 Oil seal (26x42x7) |
91252-230-003 |
from US $9.92 |
||
|
14
|
14
96140-6302010 Bearing (6302u) |
96140-6302010 |
from US $8.24 |
||
| replacement | |||||
|
14
|
14
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
||
