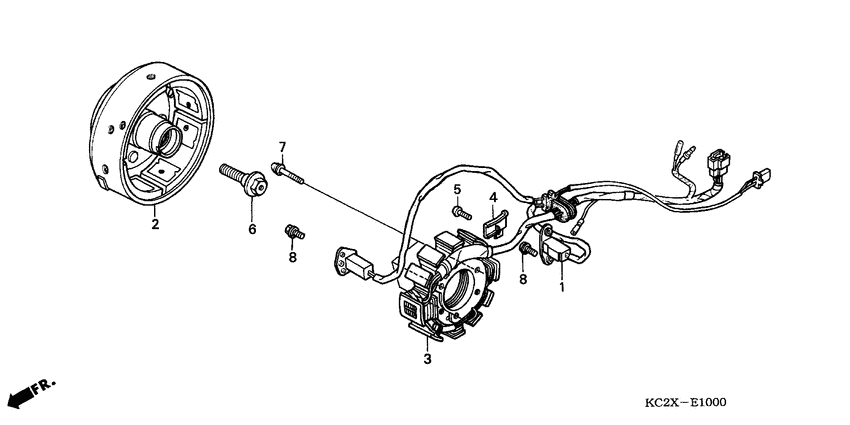

Generator Diagram Honda CM125
- Year
- 1999
- Model code
- CM125CX
- Sales region
- France
- Frame
- JH2JC05A*XK000001 - JH2JC05A*XK099999
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30300-424-004 Generator,pulse |
30300-424-004 |
US $65.55 |
||
|
2
|
2
31110-402-721 Flywheel comp. |
31110-402-721 |
US $254.32 |
||
|
3
|
3
31120-402-722 Stator Comp |
31120-402-722 |
US $243.44 |
||
|
4
|
4
32912-KB4-670 Clamp, wire |
32912-KB4-670 |
from US $4.07 |
||
|
5
|
5
90089-KR0-000 Bolt, socket, 5x12 |
90089-KR0-000 |
from US $2.22 |
||
|
6
|
6
90123-402-700 Bolt, rotor setting |
90123-402-700 |
from US $6.07 |
||
|
7
|
7
93892-050-280-8 Washer screw 5x28 |
93892-050-280-8 |
US $0.52 |
||
|
8
|
8
96600-0602000 Bolt, socket (6x20) |
96600-0602000 |
from US $0.59 |
