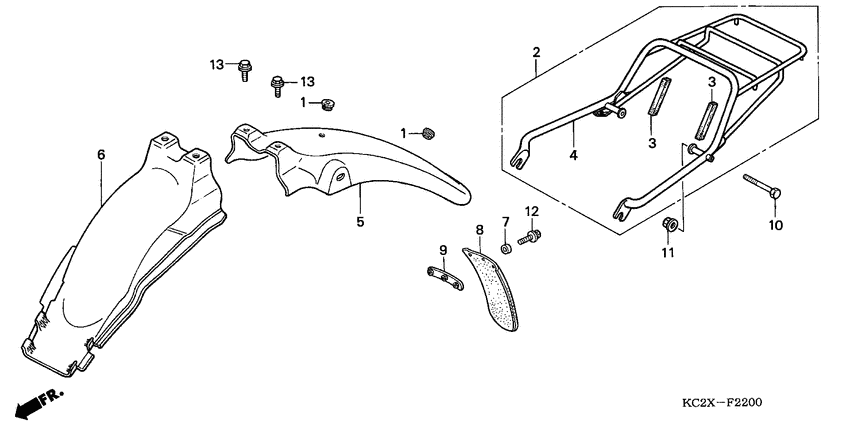

Rear fender Diagram Honda CM125
- Year
- 1999
- Model code
- CM125CX
- Sales region
- France
- Frame
- JH2JC05A*XK000001 - JH2JC05A*XK099999
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32983-447-000 Grommet |
32983-447-000 |
from US $2.44 |
||
|
2
|
2
50400-KC2-F00
Carrier unit,lugg
|
50400-KC2-F00 |
— | ||
|
3
|
3
50401-KC2-F00
Tape
|
50401-KC2-F00 |
— | ||
|
5
|
5
80100-447-670 Fender comp.,rr. |
80100-447-670 |
US $233.92 |
||
|
6
|
6
80101-KB4-000 Fender b,rr |
80101-KB4-000 |
from US $78.86 |
||
|
10
|
10
90135-KB4-000 Bolt cap 8x80 |
90135-KB4-000 |
US $3.92 |
||
|
11
|
11
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
13
|
13
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
