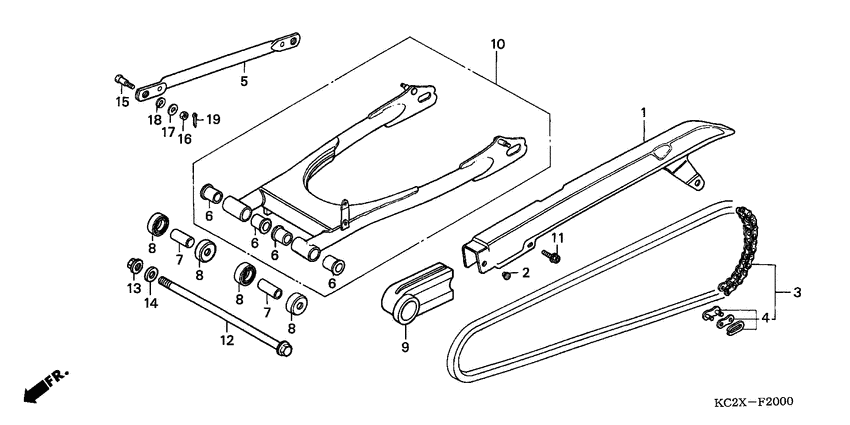

Swingarm Diagram Honda CM125
- Year
- 1999
- Model code
- CM125CX
- Sales region
- France
- Frame
- JH2JC05A*XK000001 - JH2JC05A*XK099999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-KB4-000 Case,drive chain |
40510-KB4-000 |
US $98.57 |
||
|
2
|
2
40514-333-000 Plug, chain guard |
40514-333-000 |
from US $2.66 |
||
|
3
|
3
40530-KC2-961 Chain, drive |
40530-KC2-961 |
from US $56.30 |
||
|
3
|
3
40530-KC2-962 Chain,drive rk428 |
40530-KC2-962 |
US $58.29 |
||
|
4
|
4
40531-KW7-901 Joint,drive chain |
40531-KW7-901 |
US $7.85 |
||
|
4
|
4
40531-355-013 Master link |
40531-355-013 |
from US $6.56 |
||
|
5
|
5
43431-KB4-000
Arm,brake stopper
|
43431-KB4-000 |
— | ||
|
6
|
6
52109-KC1-003 Bush, swingarm |
52109-KC1-003 |
from US $14.21 |
||
|
7
|
7
52141-356-010 Collar, r. swingarm |
52141-356-010 |
from US $35.90 |
||
|
8
|
8
52144-356-005 Cap, dust seal |
52144-356-005 |
from US $14.21 |
||
|
9
|
9
52155-KB4-000
Slider,chain
|
52155-KB4-000 |
— | ||
|
10
|
10
52200-KC2-F00
Swingarm sub assy
|
52200-KC2-F00 |
— | ||
|
11
|
11
90012-ZE6-000 Bolt, flange, 6x8 |
90012-ZE6-000 |
US $2.91 |
||
|
12
|
12
90121-KB4-000 Bolt, rr |
90121-KB4-000 |
from US $23.26 |
||
|
13
|
13
90305-GE8-003 Nut, u (14mm) |
90305-GE8-003 |
from US $4.29 |
||
|
14
|
14
90526-268-000 Washer, rr. |
90526-268-000 |
from US $2.74 |
||
|
15
|
15
9281210000 Bolt a, stopper arm |
9281210000 |
from US $1.85 |
||
|
16
|
16
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
17
|
17
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
18
|
18
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
19
|
19
94201-20150 Pin |
94201-20150 |
from US $0.37 |
