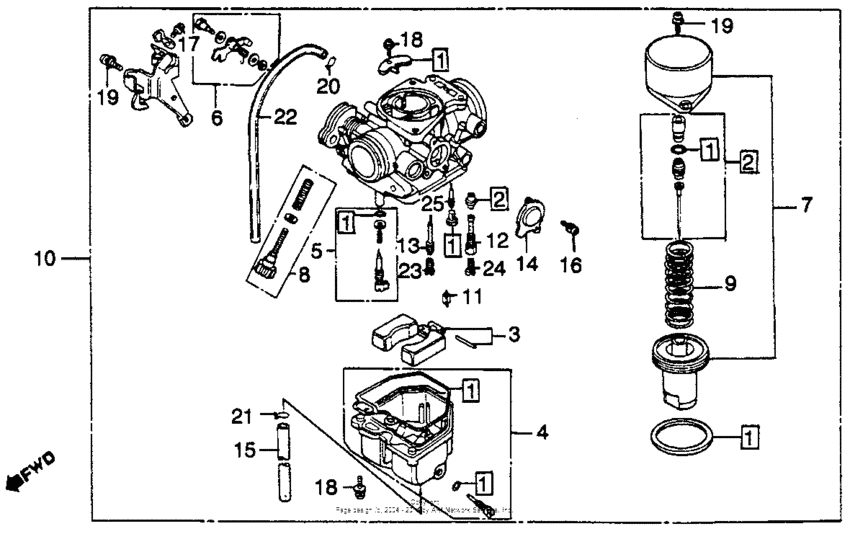

Carburetor 82 Diagram Honda CM250
- Year
- 1982
- Model code
- CM250C A
- Sales region
- USA
- Frame
- JH2MC060*CK000067 - JH2MC060*CK017891
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-KB4-671
Packing set
|
16010-KB4-671 |
— | ||
|
2
|
2
16012-KB4-672
Needle set, jet
|
16012-KB4-672 |
— | ||
|
3
|
3
16013-413-851 Float set |
16013-413-851 |
from US $62.02 |
||
|
4
|
4
16015-425-871
Chamber set a
|
16015-425-871 |
— | ||
|
5
|
5
16016-KC2-970 Screw set A |
16016-KC2-970 |
from US $15.10 |
||
|
6
|
6
16018-KB4-671
Arm set, link
|
16018-KB4-671 |
— | ||
|
7
|
7
16044-469-004
Piston set,vacuum
|
16044-469-004 |
— | ||
|
8
|
8
16028-425-671
Screw set b
|
16028-425-671 |
— | ||
|
9
|
9
16050-443-701
Spring
|
16050-443-701 |
— | ||
|
10
|
10
16100-KB4-672
Carburetor assy
|
16100-KB4-672 |
— | ||
|
11
|
11
16155-413-751 Valve, float |
16155-413-751 |
from US $25.16 |
||
|
12
|
12
16165-417-004 Holder, needle jet |
16165-417-004 |
from US $19.99 |
||
|
13
|
13
16166-KB4-671
Nozzle,main
|
16166-KB4-671 |
— | ||
|
14
|
14
16193-KB4-671
Cover, air cut valve
|
16193-KB4-671 |
— | ||
|
15
|
15
16199-435-771 Tube, rubber |
16199-435-771 |
from US $6.22 |
||
|
16
|
16
93892-0400800 Screw-washer, 4x8 |
93892-0400800 |
from US $0.47 |
||
|
17
|
17
93892-040-120-0 Screw-washer4X12 |
93892-040-120-0 |
from US $0.44 |
||
|
18
|
18
93892-0401600 Screw-washer (4x16) |
93892-0401600 |
from US $0.44 |
||
|
19
|
19
93892-0501600 Screw-washer, 5x16 |
93892-0501600 |
from US $0.44 |
||
|
20
|
20
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
21
|
21
9500202650 Clip, tube (b6.5) |
9500202650 |
from US $0.44 |
||
|
22
|
22
95003-090-0160M Bulk hose, vinyl |
95003-090-0160M |
from US $2.44 |
||
|
23
|
23
99101-393-0680 Jet,primary main |
99101-393-0680 |
from US $4.44 |
||
|
24
|
24
99101-GHB1380 Jet (#138) |
99101-GHB1380 |
from US $5.33 |
||
| replacement | |||||
|
24
|
24
99101-KPE1380 Jet (#138) |
99101-KPE1380 |
from US $5.33 |
||
|
25
|
25
99103-420-0350 Jet,slow,#35 |
99103-420-0350 |
from US $6.51 |
||
