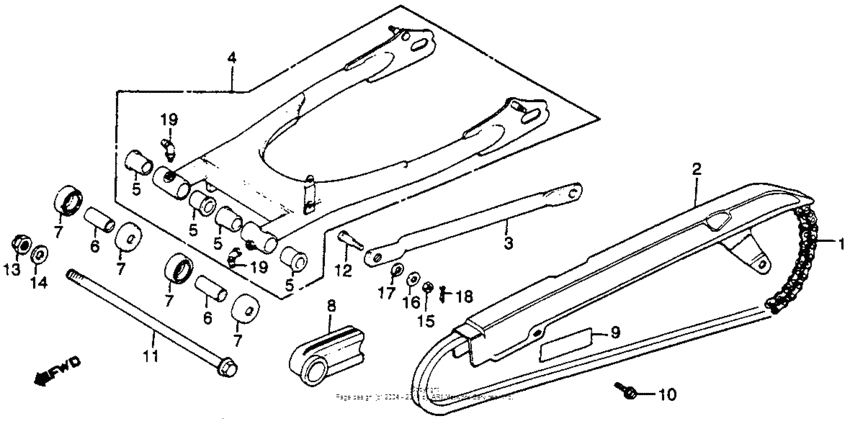

Swingarm + chain case 82 Diagram Honda CM250
- Year
- 1982
- Model code
- CM250C A
- Sales region
- USA
- Frame
- JH2MC060*CK000067 - JH2MC060*CK017891
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
405A3-KB4-672
Chain set, drive
|
405A3-KB4-672 |
— | ||
|
2
|
2
40510-KB4-000 Case,drive chain |
40510-KB4-000 |
US $98.57 |
||
|
3
|
3
43431-KB4-000
Arm,brake stopper
|
43431-KB4-000 |
— | ||
|
4
|
4
52000-KB4-000
Fork assy,rr
|
52000-KB4-000 |
— | ||
|
5
|
5
52109-KC1-003 Bush, swingarm |
52109-KC1-003 |
from US $14.21 |
||
|
6
|
6
52141-356-010 Collar, r. swingarm |
52141-356-010 |
from US $35.90 |
||
|
7
|
7
52144-356-005 Cap, dust seal |
52144-356-005 |
from US $14.21 |
||
|
8
|
8
52155-KB4-000
Slider,chain
|
52155-KB4-000 |
— | ||
|
9
|
9
87507-443-630
Mark,drive chain
|
87507-443-630 |
— | ||
|
10
|
10
90118-383-000 Bolt,washer 6x6 |
90118-383-000 |
US $2.96 |
||
|
11
|
11
90121-KB4-000 Bolt, rr |
90121-KB4-000 |
from US $23.26 |
||
|
12
|
12
90133-331-770 Bolt, rr |
90133-331-770 |
US $4 |
||
|
13
|
13
90305-197-013 Nut, u, 14mm |
90305-197-013 |
from US $4 |
||
|
14
|
14
90526-268-000 Washer, rr. |
90526-268-000 |
from US $2.74 |
||
|
15
|
15
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
16
|
16
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
17
|
17
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
18
|
18
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
19
|
19
9620180000 Fitting (b.76s) |
9620180000 |
from US $1.85 |
