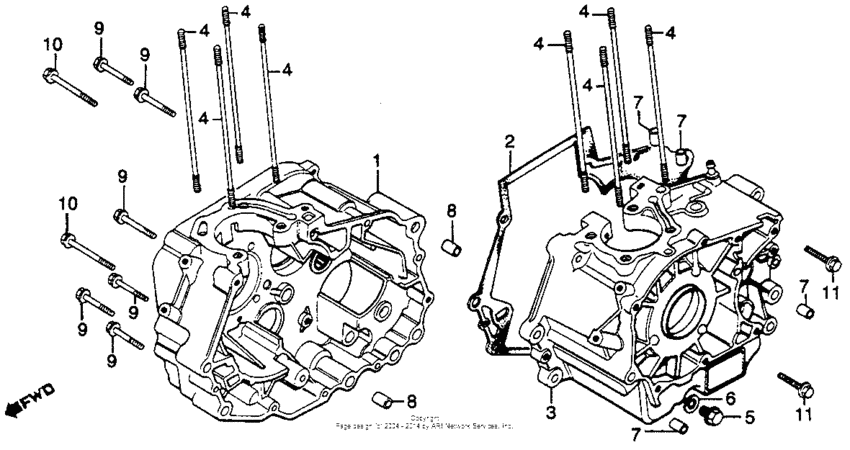

Crankcase Diagram Honda CM250
- Year
- 1983
- Model code
- CM250C A
- Sales region
- USA
- Frame
- JH2MC060*DK100009 - JH2MC060*DK106422
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-KR3-306
Crankcase, r.
|
11100-KR3-306 |
— | ||
|
2
|
2
11191-KBG-772 Gasket, crankcase |
11191-KBG-772 |
from US $17.71 |
||
|
3
|
3
11200-KB4-700
Crankcase, l.
|
11200-KB4-700 |
— | ||
|
4
|
4
90031-KB4-670 Bolt, cylinder stud |
90031-KB4-670 |
from US $10.02 |
||
|
5
|
5
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
6
|
6
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
7
|
7
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
8
|
8
94301-12200 Dowel pin12X20 |
94301-12200 |
from US $1.04 |
||
|
9
|
9
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.62 |
||
|
10
|
10
95701-0606500 Bolt, flange, 6x65 |
95701-0606500 |
from US $0.81 |
||
|
11
|
11
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
