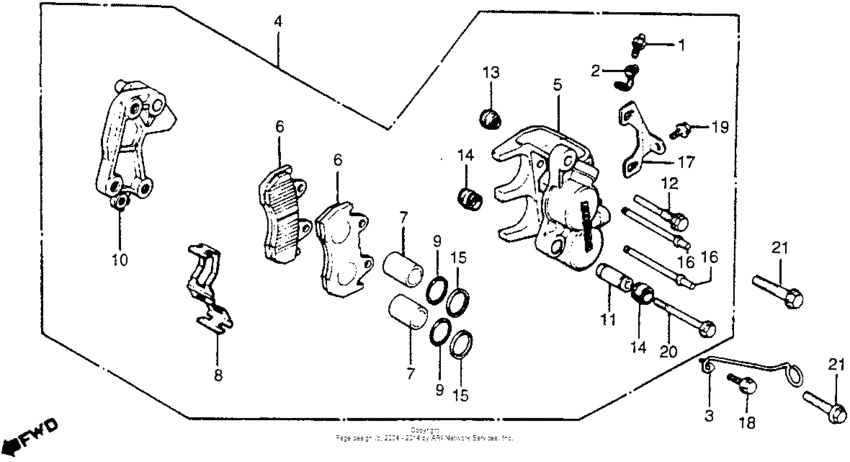

Cm400c front brake caliper 81 Diagram Honda CM400
- Year
- 1981
- Model code
- CM400C A
- Sales region
- USA
- Frame
- JH2NC012*BM000001 -
- Engine Capacity
- 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06455-MM9-405 Pad set |
06455-MM9-405 |
from US $36.44 |
||
|
1
|
1
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
2
|
2
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $1.40 |
||
|
3
|
3
44832-MA3-000
Clamp,spdmt.cable
|
44832-MA3-000 |
— | ||
|
4
|
4
45100-445-407
Caliper, l. fr.
|
45100-445-407 |
— | ||
|
4
|
4
45100-445-632 Caliper assy.l.fr |
45100-445-632 |
US $340.12 |
||
|
5
|
5
45101-MA3-006
Caliper comp.,l.
|
45101-MA3-006 |
— | ||
|
6
|
6
45105-KN8-026 Pad, fr. |
45105-KN8-026 |
from US $30.19 |
||
|
7
|
7
45107-MA3-006 Piston |
45107-MA3-006 |
from US $32.64 |
||
|
8
|
8
45108-MA3-006 Spring, pad |
45108-MA3-006 |
from US $7.40 |
||
|
9
|
9
45109-166-006 Dust seal |
45109-166-006 |
from US $4 |
||
|
10
|
10
45110-445-632
Bracket,l.fr.
|
45110-445-632 |
— | ||
|
11
|
11
45111-MA3-006 Sleeve |
45111-MA3-006 |
from US $8.73 |
||
|
12
|
12
45131-MA3-006 Pin, bolt |
45131-MA3-006 |
from US $11.99 |
||
|
13
|
13
45133-MA3-006 Boot b |
45133-MA3-006 |
from US $2.54 |
||
|
14
|
14
45133-166-016 Boot, pin |
45133-166-016 |
from US $3.18 |
||
|
15
|
15
45209-166-006 SealPISTON |
45209-166-006 |
from US $4.07 |
||
|
16
|
16
45215-MA3-006 Pin (4.0mm) |
45215-MA3-006 |
from US $7.40 |
||
|
17
|
17
45217-MA3-006 Plate |
45217-MA3-006 |
from US $4.24 |
||
|
18
|
18
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
19
|
19
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
20
|
20
95801-0805007 Bolt, flange (8x50) |
95801-0805007 |
from US $0.81 |
||
|
21
|
21
95801-100-320-0 Bolt,flange,10x32 |
95801-100-320-0 |
from US $0.81 |
