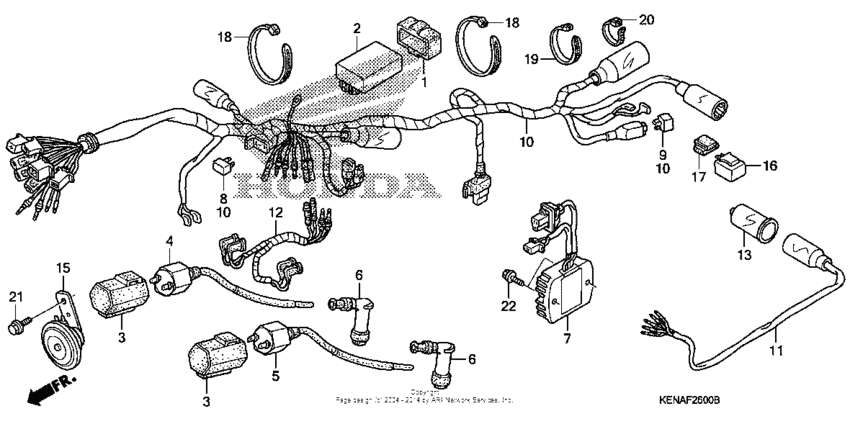

Wire harness Diagram Honda CMX250 Rebel
- Year
- 2007
- Model code
- CMX250C AC
- Sales region
- USA
- Frame
- JH2MC131*7K300001 - JH2MC131*7K399999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30401-HB6-000 Rubber |
30401-HB6-000 |
from US $4.44 |
||
| replacement | |||||
|
1
|
1
30401-HB6-010 CUSHION |
30401-HB6-010 |
from US $4.29 |
||
|
2
|
2
30410-KBG-003 Module, ign cont |
30410-KBG-003 |
from US $152.80 |
||
|
3
|
3
30506-KR3-670 Suspension |
30506-KR3-670 |
from US $8.73 |
||
|
4
|
4
30510-KEN-691 Coil, r. ignition |
30510-KEN-691 |
from US $56.46 |
||
|
5
|
5
30520-KEN-691 Coil, l. ignition |
30520-KEN-691 |
from US $56.46 |
||
|
6
|
6
30700-KEN-690 Cap assy. |
30700-KEN-690 |
from US $18.32 |
||
|
7
|
7
31600-KEN-A51 Rectifier, regulate |
31600-KEN-A51 |
from US $181.64 |
||
|
8
|
8
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $25.02 |
||
|
9
|
9
31700-196-000 Rectifier comp., silicon |
31700-196-000 |
from US $21.08 |
||
|
10
|
10
32100-KEN-A50 Wire harness |
32100-KEN-A50 |
US $346.41 |
||
|
11
|
11
32101-KR3-600 Sub-wire, taillight |
32101-KR3-600 |
from US $16.05 |
||
|
12
|
12
32102-KR3-870 Sub-harness |
32102-KR3-870 |
US $15.74 |
||
|
13
|
13
32108-KG8-000 Cover, harness |
32108-KG8-000 |
from US $4 |
||
|
15
|
15
38110-MEJ-B02 Horn assy. (high) |
38110-MEJ-B02 |
from US $33.39 |
||
|
16
|
16
38301-KG0-024 Relay, turn signal |
38301-KG0-024 |
from US $49.10 |
||
|
17
|
17
38306-GE7-000 Suspension |
38306-GE7-000 |
from US $4.88 |
||
|
18
|
18
90620-SB2-003 BandWIRE HARNESS |
90620-SB2-003 |
from US $5.77 |
||
|
19
|
19
90651-KV6-003 Band, wire, 165mm (black) |
90651-KV6-003 |
from US $2.96 |
||
|
20
|
20
90652-KT1-771 Band, wire (black) |
90652-KT1-771 |
from US $2.29 |
||
|
21
|
21
95701-060-120-7 BoltFLANGE, 6X12 |
95701-060-120-7 |
from US $0.52 |
||
|
22
|
22
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
